Alonso-Mori Roberto, Sokaras Dimosthenis, Cammarata Marco, Ding Yuantao, Feng Yiping, Fritz David, Gaffney Kelly J, Hastings Jerome, Kao Chi-Chang, Lemke Henrik T, Maxwell Timothy, Robert Aymeric, Schropp Andreas, Seiboth Frank, Sikorski Marcin, Song Sanghoon, Weng Tsu-Chien, Zhang Wenkai, Glenzer Siegfried, Bergmann Uwe, Zhu Diling
SLAC National Accelerator Laboratory, Menlo Park, CA, 94025, USA.
Univ Rennes, CNRS, IPR (Institut de Physique de Rennes), UMR 6251, 35000, Rennes, France.
Sci Rep. 2020 Oct 8;10(1):16837. doi: 10.1038/s41598-020-74003-1.

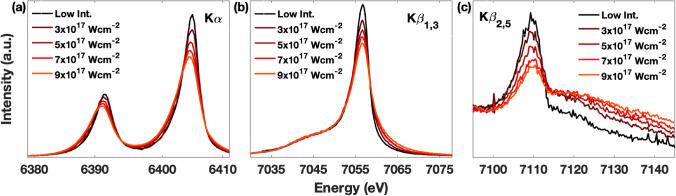

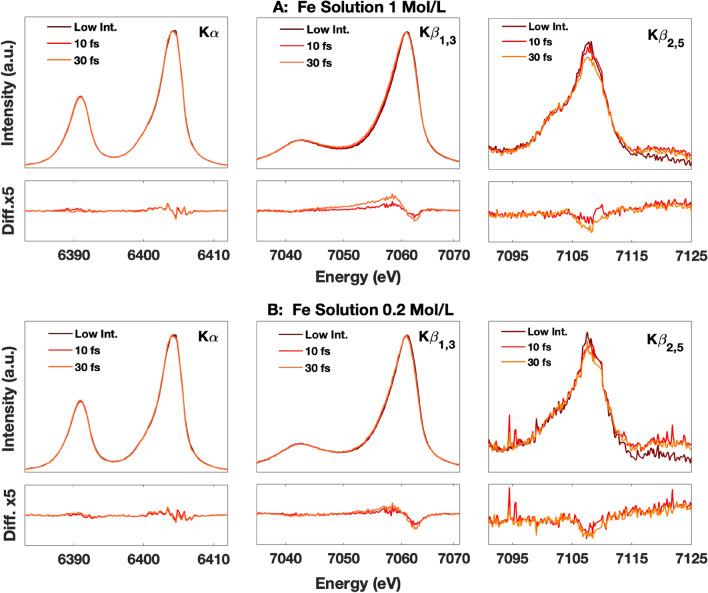

We report the time-resolved femtosecond evolution of the K-shell X-ray emission spectra of iron during high intensity illumination of X-rays in a micron-sized focused hard X-ray free electron laser (XFEL) beam. Detailed pulse length dependent measurements revealed that rapid spectral energy shift and broadening started within the first 10 fs of the X-ray illumination at intensity levels between 10 and 10 W cm. We attribute these spectral changes to the rapid evolution of high-density photoelectron mediated secondary collisional ionization processes upon the absorption of the incident XFEL radiation. These fast electronic processes, occurring at timescales well within the typical XFEL pulse durations (i.e., tens of fs), set the boundary conditions of the pulse intensity and sample parameters where the widely-accepted 'probe-before-destroy' measurement strategy can be adopted for electronic-structure related XFEL experiments.
我们报告了在微米级聚焦硬X射线自由电子激光(XFEL)束中高强度X射线照射期间铁的K壳层X射线发射光谱的时间分辨飞秒演化。详细的与脉冲长度相关的测量表明,在10至10 W/cm强度水平下,X射线照射的前10飞秒内就开始了快速的光谱能量移动和展宽。我们将这些光谱变化归因于在吸收入射XFEL辐射时高密度光电子介导的二次碰撞电离过程的快速演化。这些快速的电子过程发生在典型XFEL脉冲持续时间(即几十飞秒)以内的时间尺度上,设定了脉冲强度和样品参数的边界条件,在这些条件下,可以对与电子结构相关的XFEL实验采用广泛接受的“先探测后破坏”测量策略。
