Ma Junyu, Ma Chen, Huang Xiaoyu, de Araujo Pedro Henrique Hermes, Goyal Amit Kumal, Lu Guolin, Feng Chun
Key Laboratory of Synthetic and Self-Assembly Chemistry for Organic Functional Molecules, Center for Excellence in Molecular Synthesis, Shanghai Institute of Organic Chemistry, University of Chinese Academy of Sciences, Chinese Academy of Sciences, 345 Lingling Road, Shanghai 200032, China.
Department of Chemical Engineering and Food Engineering, Federal University of Santa Catarina, Florianópolis-SC, 88040-970, SC, Brazil.
Fundam Res. 2022 Feb 3;3(1):93-101. doi: 10.1016/j.fmre.2022.01.020. eCollection 2023 Jan.

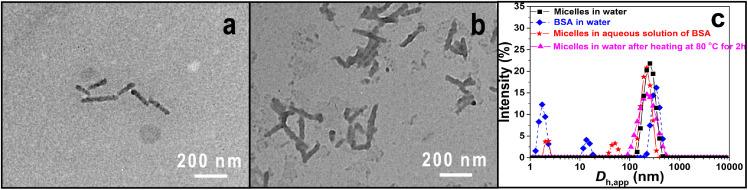

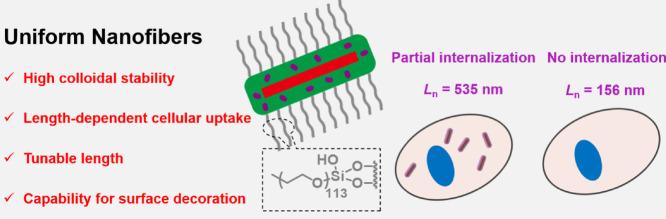

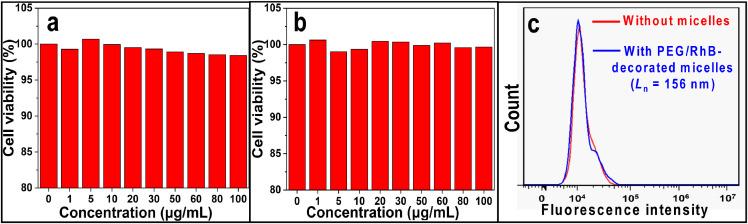

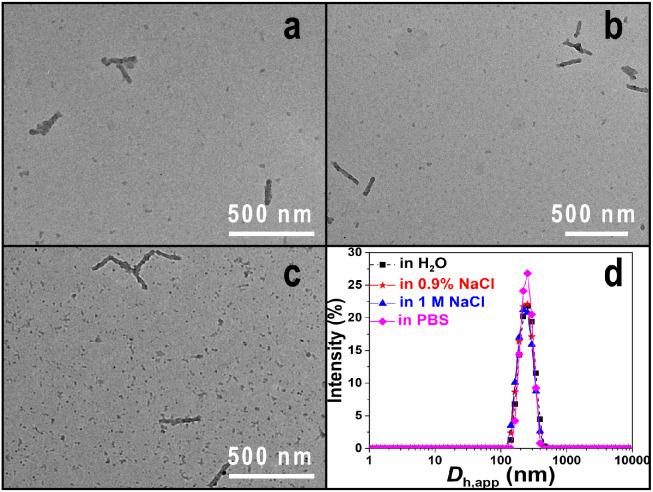

Fragmentation/disassembly of fiber-like micelles generated by living crystalline-driven self-assembly (CDSA) is usually encountered in aqueous media, which hinders the applications of micelles. Herein, we report the generation of uniform fiber-like micelles consisting of a π-conjugated oligo(-phenylenevinylene) core and a cross-linking silica shell with grafted poly(ethylene glycol) (PEG) chains by the combination of living CDSA, silica chemistry and surface grafting-onto strategy. Owing to the presence of crosslinking silica shell and the outmost PEG chains, the resulting micelles exhibit excellent dispersity and colloidal stability in PBS buffer, BSA aqueous solution and upon heating at 80 °C for 2 h without micellar fragmentation/disassembly. The micelles also show negligible cytotoxicity toward both HeLa cervical cancer and HEK239T human embryonic kidney cell lines. Interestingly, micelles with of 156 nm show the "stealth" property with no significant uptake by HeLa cells, whereas some certain amounts of micelles with of 535 nm can penetrate into HeLa cells, showing length-dependent cellular uptake behaviors. These results provide a route to prepare uniform, colloidally stable fiber-like nanostructures with tunable length and functions derived for biomedical applications.
由活性晶体驱动自组装(CDSA)产生的纤维状胶束在水性介质中通常会发生碎片化/解体,这阻碍了胶束的应用。在此,我们报告了通过活性CDSA、硅化学和表面接枝策略相结合,生成了由π共轭低聚(亚苯基亚乙烯基)核和带有接枝聚(乙二醇)(PEG)链的交联二氧化硅壳组成的均匀纤维状胶束。由于存在交联二氧化硅壳和最外层的PEG链,所得胶束在PBS缓冲液、BSA水溶液中以及在80°C加热2小时时均表现出优异的分散性和胶体稳定性,且无胶束碎片化/解体现象。这些胶束对HeLa宫颈癌和HEK239T人胚肾细胞系的细胞毒性也可忽略不计。有趣的是,直径为156 nm的胶束表现出“隐身”特性,HeLa细胞对其摄取不明显,而一些直径为535 nm的特定量胶束可以穿透HeLa细胞,表现出长度依赖性的细胞摄取行为。这些结果为制备具有可调长度和功能的均匀、胶体稳定的纤维状纳米结构提供了一条途径,可用于生物医学应用。
