Losi Tommaso, Viola Fabrizio Antonio, Sala Elda, Heeney Martin, He Qiao, Kleemann Hans, Caironi Mario
Center for Nano Science and Technology, Istituto Italiano di Tecnologia, Via Rubattino 81, Milano, 20134, Italy.
Department of Electrical and Electronic Engineering, University of Cagliari, via Marengo, Cagliari, 09123, Italy.
Small Methods. 2024 Dec;8(12):e2400546. doi: 10.1002/smtd.202400546. Epub 2024 Aug 6.

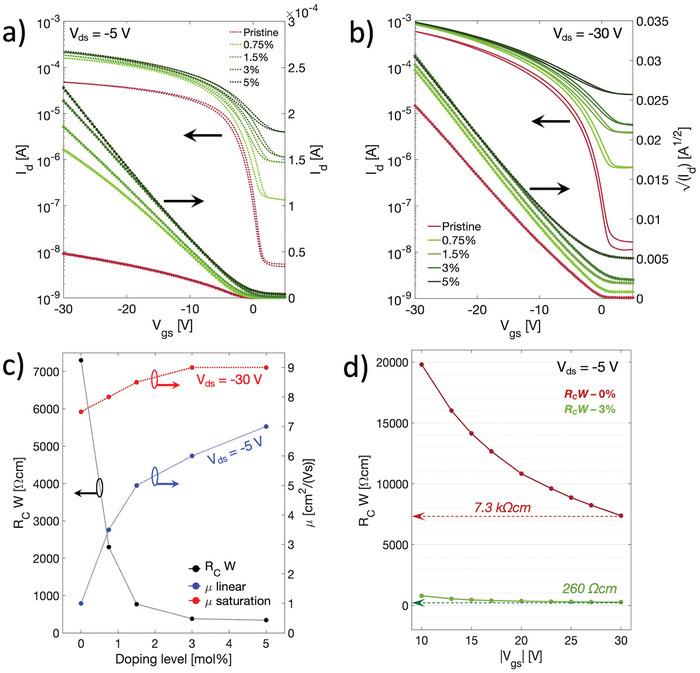

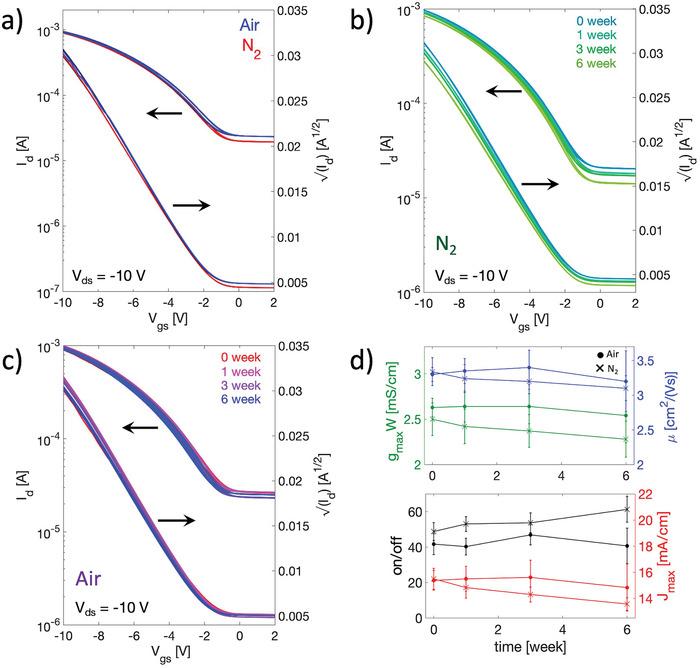

Small molecule/polymer semiconductor blends are promising solutions for the development of high-performing organic electronics. They are able to combine ease in solution processability, thanks to the tunable rheological properties of polymeric inks, with outstanding charge transport properties thanks to high crystalline phases of small molecules. However, because of charge injection issues, so far such good performances are only demonstrated in ad-hoc device architectures, not suited for high-frequency applications, where transistor dimensions require downscaling. Here, the successful integration of the most performing blend reported to date, based on 2,7-dioctyl[1] benzothieno[3,2-b][1]benzothiophene (C-BTBT) and poly(indacenodithiophene-co-benzothiadiazole) (CIDT-BT), in OFETs characterized by channel and overlap lengths equal to 1.3 and 1.9 µm, respectively, is demonstrated, enabling a transition frequency of 23 MHz at -8 V. Two key aspects allowed such result: molecular doping, leading to width-normalized contact resistance of only 260 Ωcm, allowing to retain an apparent field-effect mobility as high as 3 cm/(Vs) in short channel devices, and the implementation of a high capacitance dielectric stack, enabling the reduction of operating voltages below 10 V and the overcoming of self-heating issues. These results represent a fundamental step for the future development of low-cost and high-speed printed electronics for IoT applications.
小分子/聚合物半导体共混物是高性能有机电子产品开发中很有前景的解决方案。由于聚合物油墨具有可调节的流变特性,它们能够兼具溶液可加工性的便利性;又因小分子的高结晶相,具备出色的电荷传输特性。然而,由于电荷注入问题,到目前为止,如此优异的性能仅在特定的器件架构中得到证明,这种架构不适用于高频应用,因为高频应用中晶体管尺寸需要缩小。在此,基于2,7 - 二辛基[1]苯并噻吩并[3,2 - b][1]苯并噻吩(C - BTBT)和聚(茚并二噻吩 - 共 - 苯并噻二唑)(CIDT - BT)的迄今报道的性能最佳的共混物,成功集成到沟道长度和重叠长度分别为1.3和1.9 µm的有机场效应晶体管(OFET)中,在 - 8 V时实现了23 MHz的转折频率。两个关键因素促成了这一结果:分子掺杂,使得宽度归一化接触电阻仅为260 Ωcm,从而在短沟道器件中能够保持高达3 cm²/(Vs)的表观场效应迁移率;以及采用高电容介质堆叠,能够将工作电压降低到10 V以下,并克服自热问题。这些结果是面向物联网应用的低成本、高速印刷电子未来发展的重要一步。
