Effect of costus lucanius bagasse fibre on fresh and hardened concrete using RSM modelling.

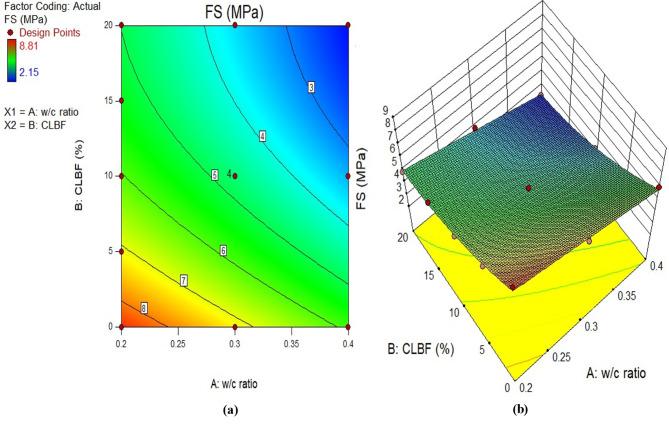

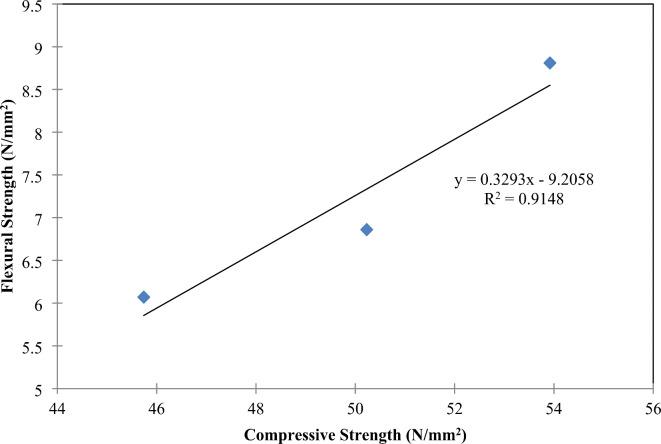

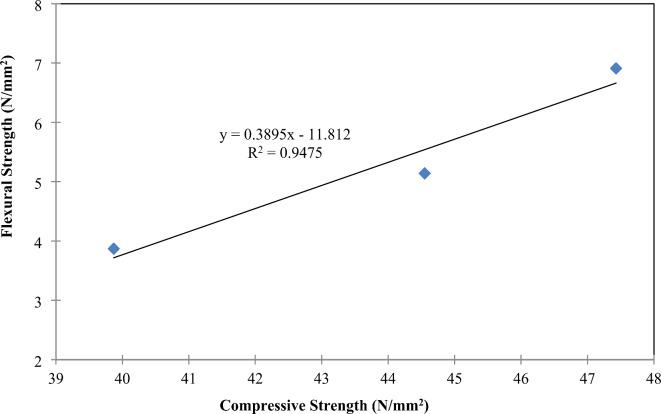

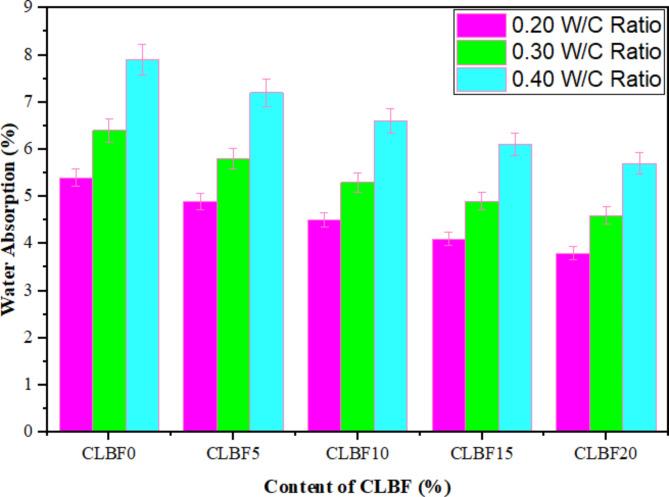

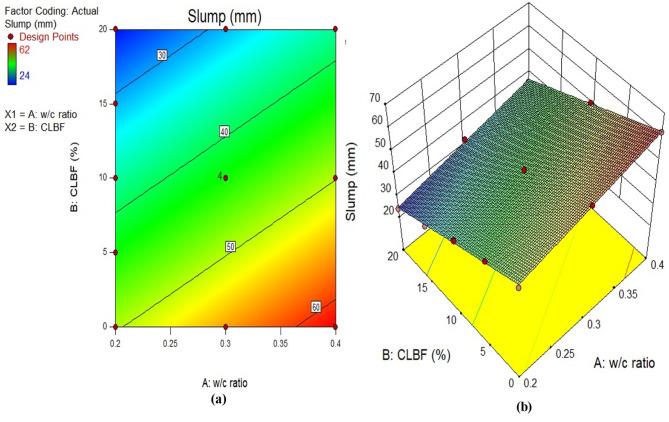

This investigation purposes to use the recycling waste materials in concrete to produce a sustainable environment for construction. The Costus lucanius bagasse fiber (CLBF) was utilized as supplementary cementitious material (SCM) to analyse the workability and mechanical properties of blended cement concrete. The concrete samples were made with the inclusion of 5-20% of CLBF at several w/c ratio by applying RSM modelling and optimization. Moreover, the cubical specimens were cast to study the compressive strength (CS), while beams were used to investigate the flexural strength (FS) on 28th days correspondingly. The outcomes show that the compressive and flexural strengths were decreased with rise in proportion replacement in concrete at various w/c ratio. The highest flexural and compressive strengths was attained at 5% of CLBF at 28 days respectively. Across the tested specimens, the values of compressive strength and flexural strength ranged from 30.20 to 53.92 N/mm and 2.15-8.81 N/mm for CLBF correspondingly. Besides, the workability and water absorption of concrete is getting decreased as the content of CLBF increases while it is recorded increasing as w/c ratio increases from 0.20 to 0.40. Furthermore, response model predictions were constructed and verified applying ANOVA at an acceptable level of significance of 95%. The coefficients of R for the mathematical models ranged from 98 to 99.99%. The research study also indicated that cement can be substituted by CLBF in the production of concrete for various construction purposes.
