Synthesis of Tris-pillar[5]arene and Its Association with Phenothiazine Dye: Colorimetric Recognition of Anions.

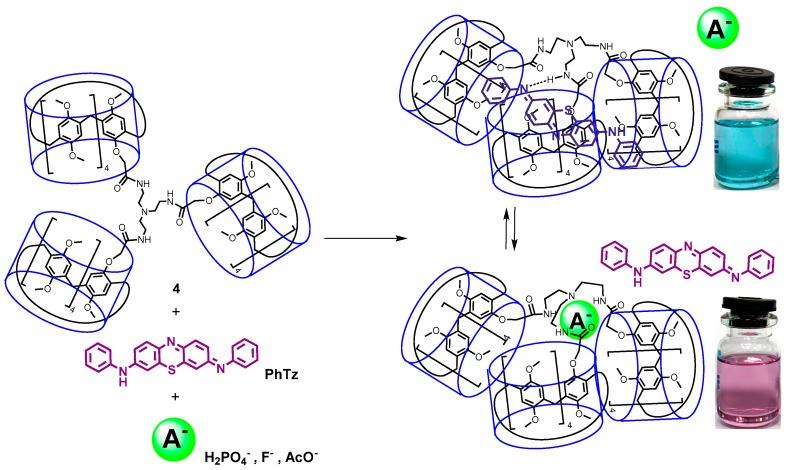

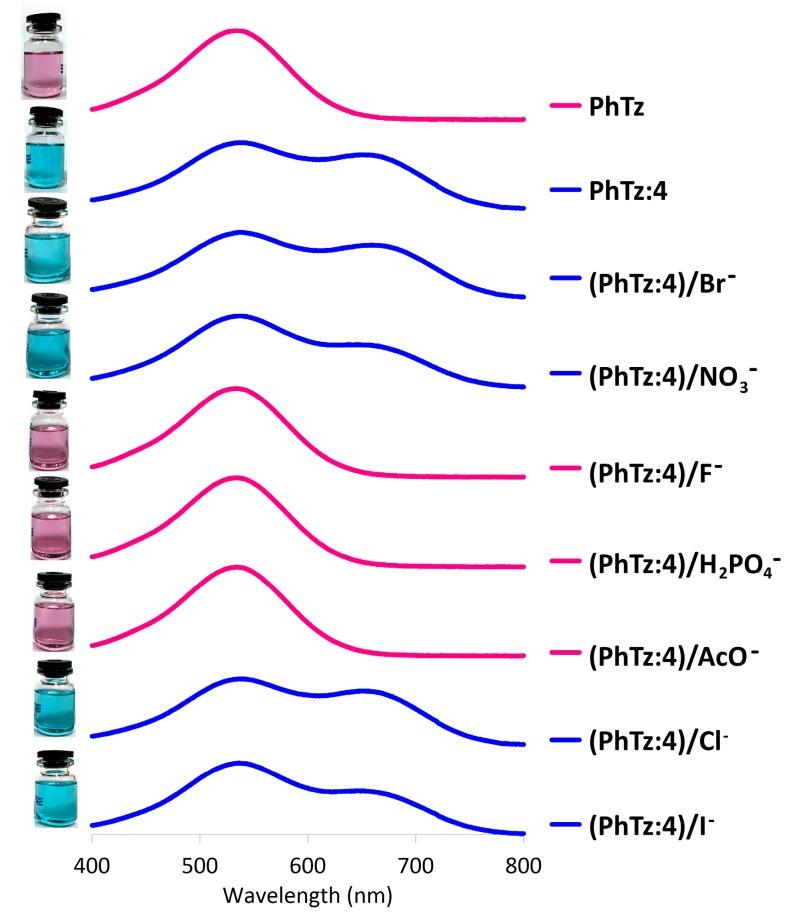

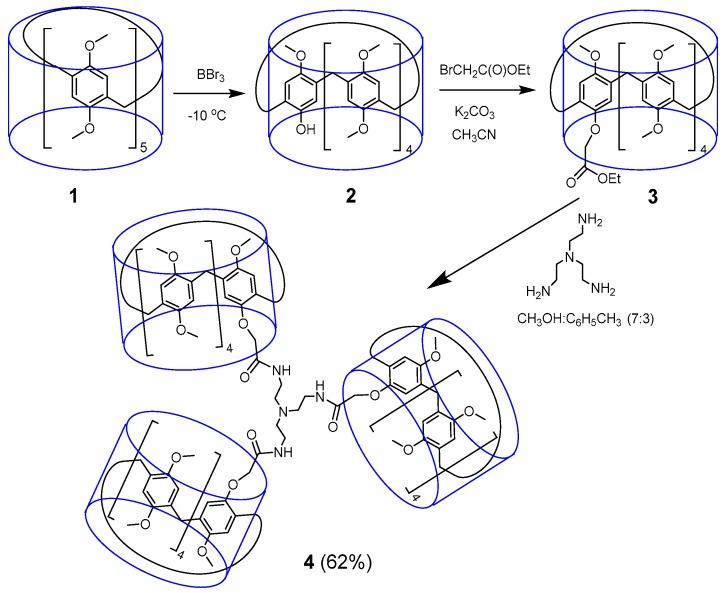

A multicyclophane with a core based on tris(2-aminoethyl)amine (TREN) linked by amide spacers to three fragments of pillar[5]arene was synthesized. The choice of the tris-amide core allowed the multicyclophane to bind to anion guests. The presence of three terminal pillar[5]arene units provides the possibility of effectively binding the colorimetric probe -phenyl-3-(phenylimino)-3H-phenothiazin-7-amine (). It was established that the multicyclophane complexed in chloroform with a 1:1 stoichiometry (lgK = 5.2 ± 0.1), absorbing at 650 nm. The proposed structure of the complex was confirmed by H-NMR spectroscopy: the amide group linking the pillar[5]arene to the TREN core forms a hydrogen bond with the imino-group while the pillararenes surround . It was established that the :tris-pillar[5]arene complex could be used as a colorimetric probe for fluoride, acetate, and dihydrogen phosphate anions due to the anion binding with proton donating amide groups which displaced the probe. Dye displacement resulted in a color change from blue to pink, lowering the absorption band at 650 nm and increasing that at 533 nm.
