Puciło Michał, Puciło Aleksandra, Safranow Krzysztof, Nowicka Alicja
Stomatologia Puciło, Zielona Góra, Poland.
Faculty of Medicine and Dentistry, Pomeranian Medical University, Szczecin, Poland.
Imaging Sci Dent. 2021 Dec;51(4):373-382. doi: 10.5624/isd.20210031. Epub 2021 Aug 11.
Cone-beam computed tomography (CBCT) reconstructions were analysed to elucidate factors affecting the anatomical relationship between tooth roots and the mandibular canal(MC).
Images of 300 volumetric tomography scans of patients aged between 20 and 79 years old (167 women and 133 men) were analysed. The mean distances between 2,053 dental root apices and the internal border of the MC were obtained by measuring the horizontal and vertical distances on coronal CBCT images. The actual distance was then calculated mathematically with the Pythagorean formula. The statistical significance of differences between men and women was assessed using the Mann-Whitney test. Correlations with patient age were evaluated with the Spearman rank correlation coefficient.

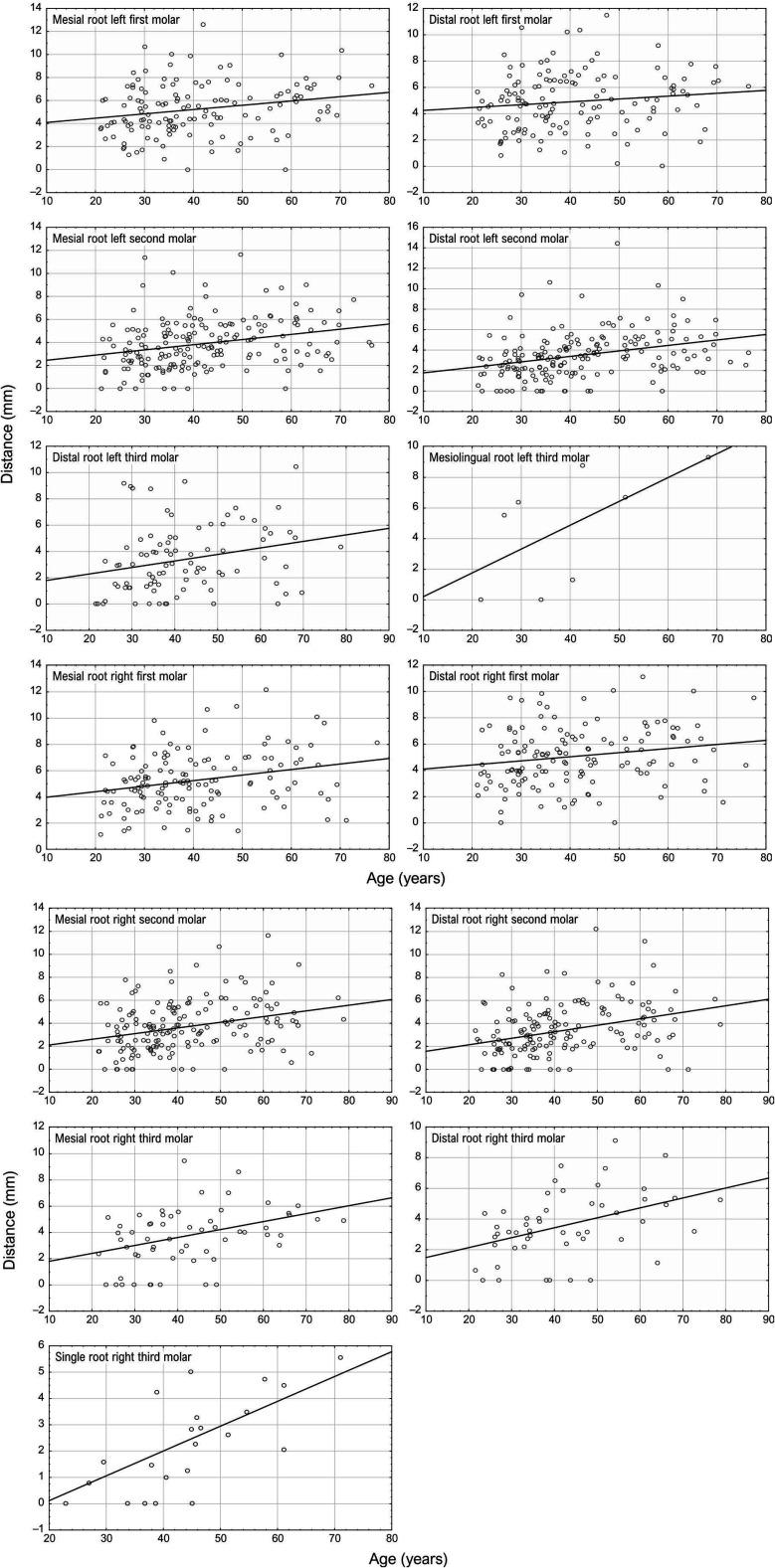

The mean distances ranged from 2.17 mm, for single right third molar roots in women, to 8.02 mm for single left third molar mesiolingual roots in men. The mean distances measured for the mandibular right second molar mesial roots and the right second premolar roots were larger in men than in women. Age showed a significant positive correlation with the measured distances for mesial and distal roots of the first and second molar on both sides and the right third molar, mesiolingual roots of the left third molar, and single roots of the right third molar.
The root-to-mandibular canal distance depended on age and the type of tooth. In 2 root types, this distance was impacted by sex.
分析锥形束计算机断层扫描(CBCT)重建图像,以阐明影响牙根与下颌管(MC)解剖关系的因素。
分析了300例年龄在20至79岁之间患者(167名女性和133名男性)的容积断层扫描图像。通过测量冠状面CBCT图像上的水平和垂直距离,得出2053个牙根尖与下颌管内边界之间的平均距离。然后用勾股定理进行数学计算得出实际距离。采用Mann-Whitney检验评估男女之间差异的统计学意义。用Spearman等级相关系数评估与患者年龄的相关性。
平均距离范围从女性右侧单颗第三磨牙牙根的2.17毫米到男性左侧单颗第三磨牙近中舌侧牙根的8.02毫米。男性下颌右侧第二磨牙近中牙根和右侧第二前磨牙牙根的平均测量距离大于女性。年龄与两侧第一和第二磨牙近远中牙根、右侧第三磨牙、左侧第三磨牙近中舌侧牙根以及右侧第三磨牙单根的测量距离呈显著正相关。
牙根与下颌管的距离取决于年龄和牙齿类型。在两种牙根类型中,该距离受性别影响。
