Gao Xiaochao, Gou Jing, Zhang Ling, Duan Shasha, Li Chunzhong
School of Materials Science and Engineering, Key Laboratory for Ultrafine Materials of Ministry of Education, East China University of Science & Technology 130 Meilong Road Shanghai 200237 China
RSC Adv. 2018 Feb 20;8(15):8181-8189. doi: 10.1039/c7ra12879g. eCollection 2018 Feb 19.

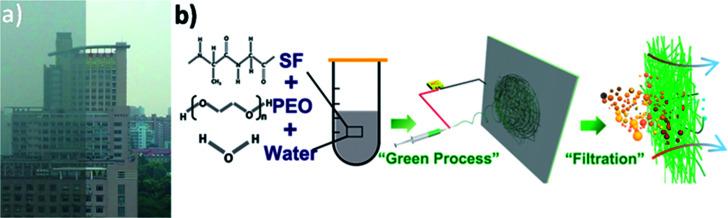

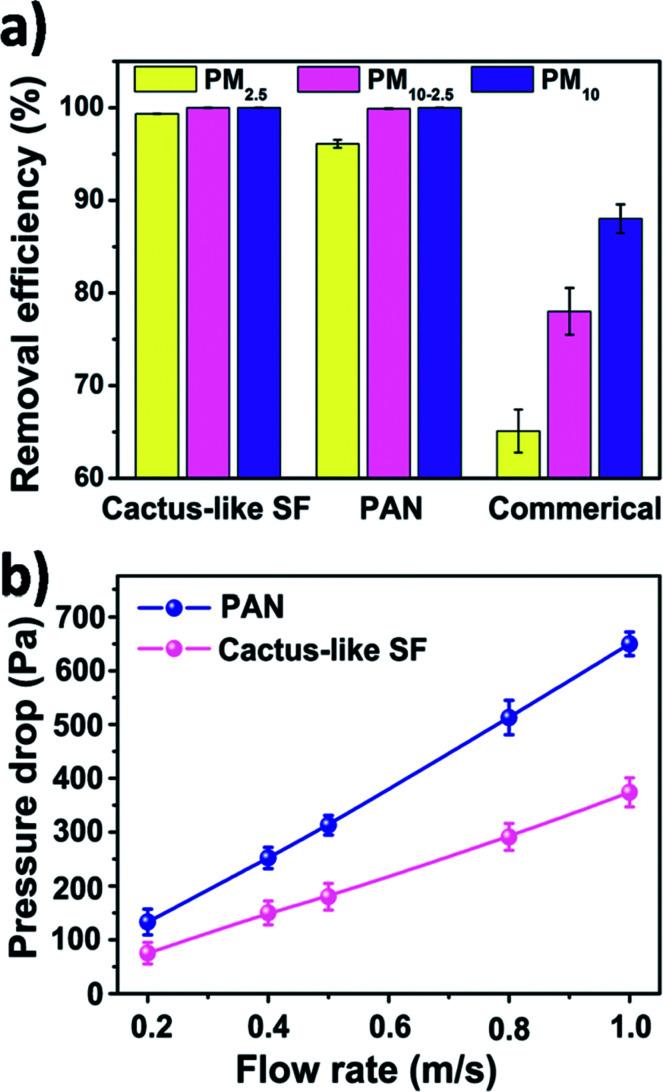

Fibrous air filters fabricated by electrospinning have proved to be an effective approach among the various strategies for PM2.5 removal. However, in the electrospinning process, the large amounts of toxic organic solvents usually evaporate into the atmosphere and disposing of these used polymer-based air filters would leave further pollution in the environment. Here, we report on the fabrication of a silk fibroin based nanofiber air filter with robust filtration performance a green electrospinning process. Silk worm cocoons were degummed and dialyzed against water to form the silk fibroin solution and then the silk fibroin nanofiber membranes were fabricated by electrospinning with the help of polyethylene oxide. Moreover, special attention was paid to the morphological evolution of the pollutants captured by the nanofiber nets during the filtration process. It was discovered that the inherent properties of silk fibroin play a key role in improving the filtration performance. Benefiting from the richness of functional groups, the resultant silk fibroin fibrous membranes exhibited a high filtration efficiency of 99.99% with a relatively low air resistance of only 75 Pa, leading to an obvious higher quality factor. Due to the biodegradability of silk fibroin, the membranes are disposable after use. We believe that the methodology and results presented here will not only provide a novel perspective for air filtration, but also pave the way for producing a safe and clean air filtration system.

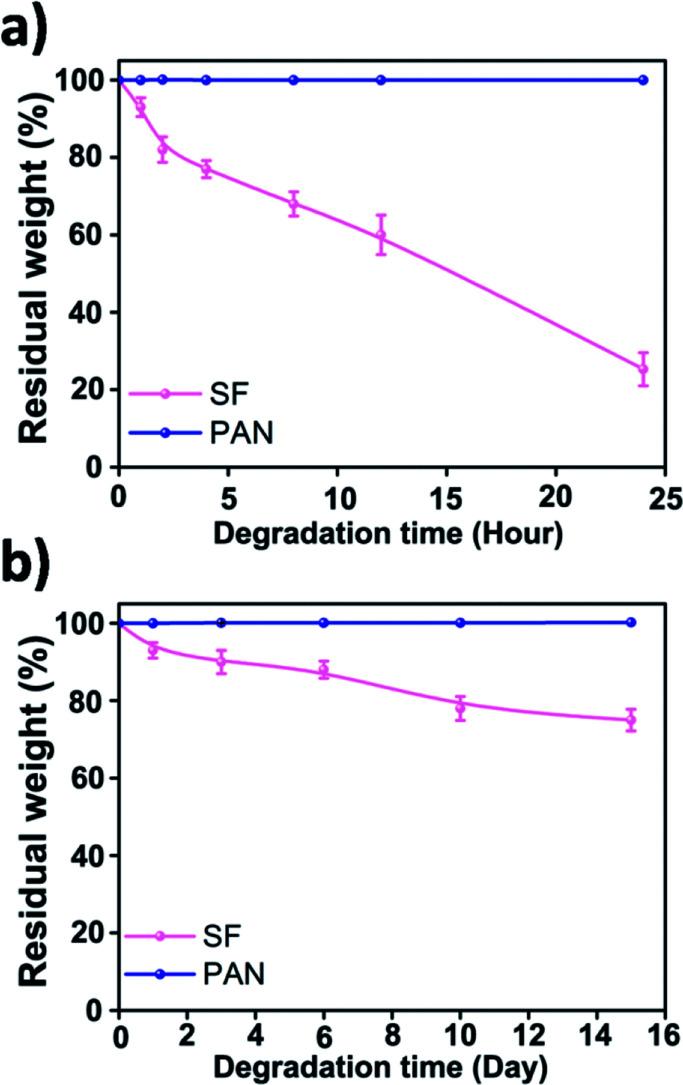

通过静电纺丝制备的纤维空气过滤器已被证明是在去除PM2.5的各种策略中一种有效的方法。然而,在静电纺丝过程中,大量有毒有机溶剂通常会挥发到大气中,并且处理这些用过的聚合物基空气过滤器会在环境中留下进一步的污染。在此,我们报道了一种具有强大过滤性能的基于丝素蛋白的纳米纤维空气过滤器的制备——一种绿色静电纺丝工艺。将蚕茧脱胶并对水进行透析以形成丝素蛋白溶液,然后在聚环氧乙烷的帮助下通过静电纺丝制备丝素蛋白纳米纤维膜。此外,特别关注了过滤过程中纳米纤维网捕获的污染物的形态演变。发现丝素蛋白的固有特性在提高过滤性能方面起着关键作用。受益于官能团的丰富性,所得丝素蛋白纤维膜表现出99.99%的高过滤效率,相对较低的空气阻力仅为75 Pa,导致质量因子明显更高。由于丝素蛋白的生物可降解性,这些膜在使用后可一次性处理。我们相信,这里介绍的方法和结果不仅将为空气过滤提供一个新的视角,而且还将为生产安全清洁的空气过滤系统铺平道路。
