A Multimodal, Reconfigurable Workspace Soft Gripper for Advanced Grasping Tasks.

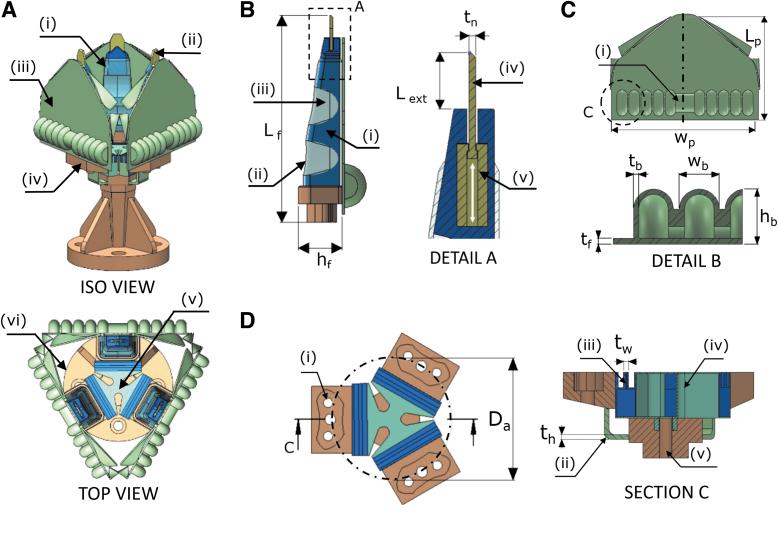

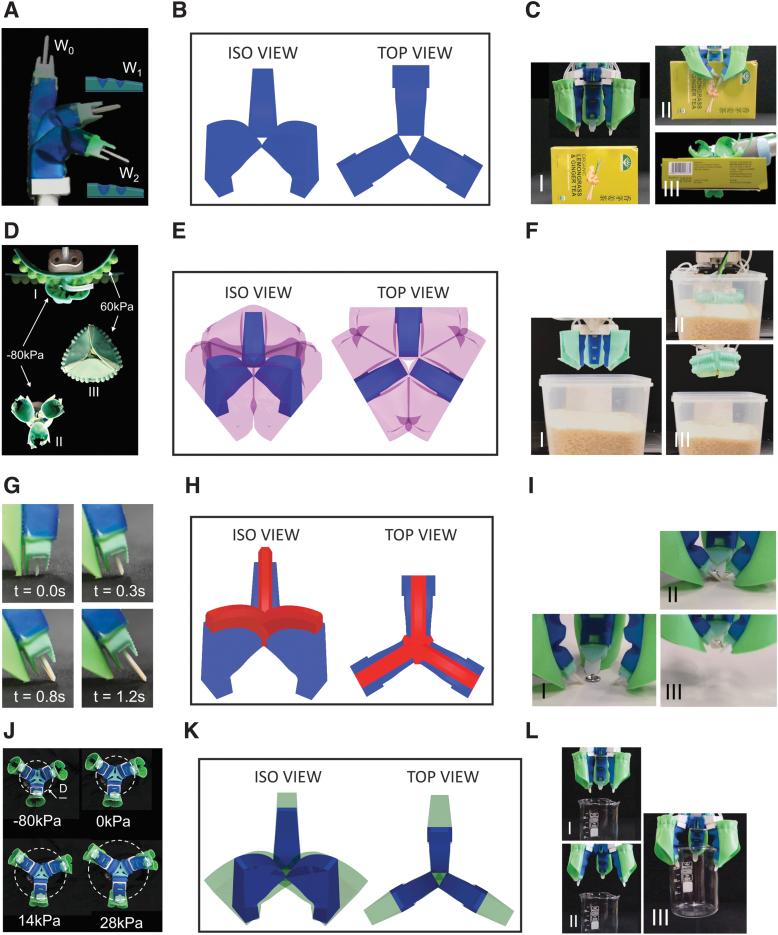

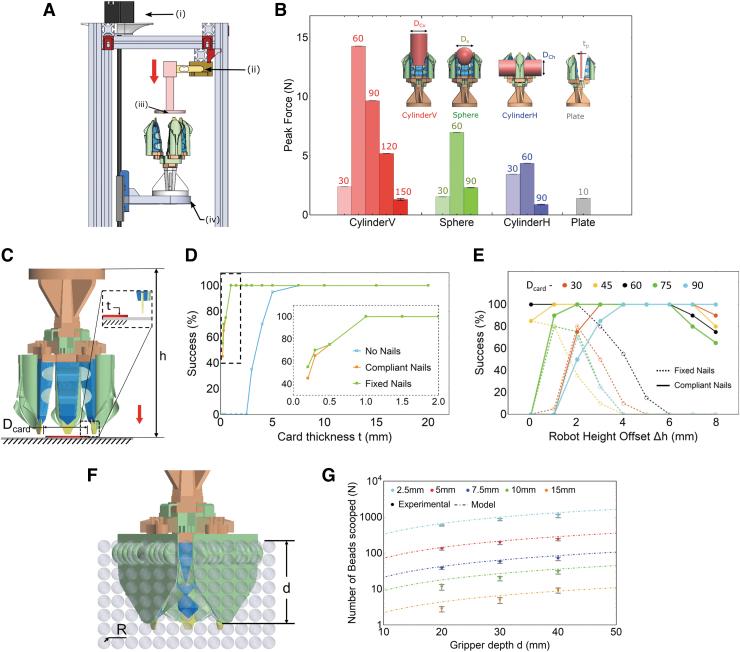

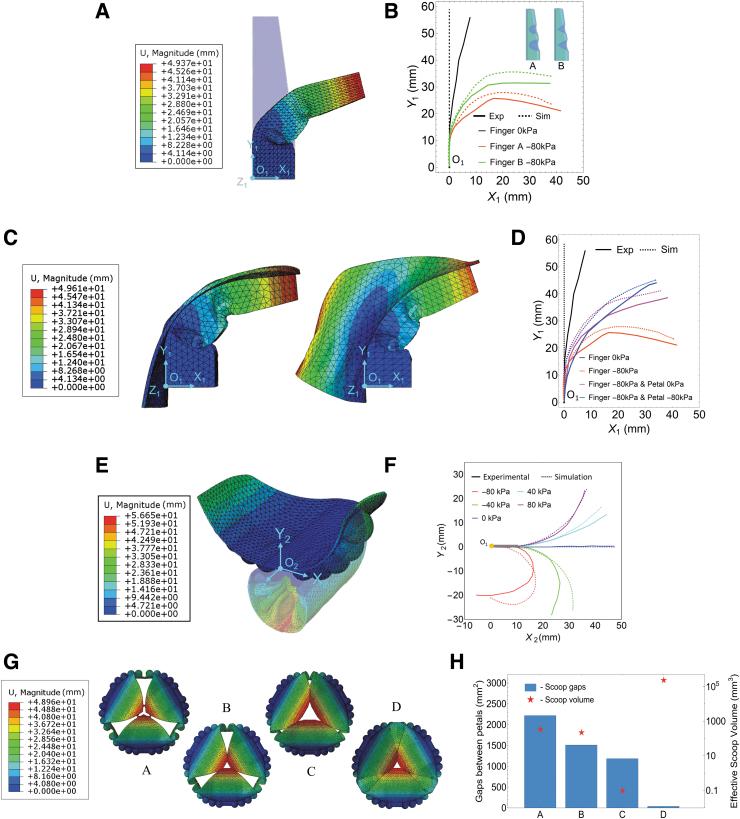

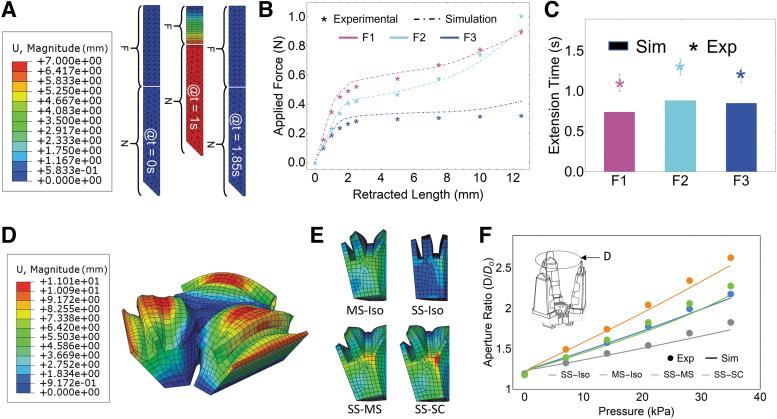

A new generation of soft functional materials and actuator designs has ushered the development of highly advanced soft grippers as adaptive alternatives to traditional rigid end-effectors for grasping and manipulation applications. While being advantageous over their rigid counterparts, soft gripper capabilities such as contact effort are mostly a consequence of the gripper workspace, which in turn is largely constrained by the gripper design. Moreover, soft grippers designed for highly specific grasping tasks such as scooping grains or wide payloads are usually limited in grasping other payload types or in their manipulation versatility. This article describes a reconfigurable workspace soft (RWS) gripper that exploits compliant structures and pneumatic actuators to reconfigure its workspace to suit a wide range of grasping tasks. To achieve desired kinematics, finite element analysis (FEA) studies are conducted to dictate actuator design and materials used. Various grasping modes and their reconfiguration of the gripper workspace are presented and characterized, including the gripper's capability to reliably scoop granular items with radii as small as 1.5 mm, precisely pick items as thin as 300 μm from flat surfaces, as well as grasp large convex, nonconvex, and deformable items as heavy as 1.4 kg. The RWS gripper can modify and increase its grasping workspace volume by 397%, enabling the widest range of grasping capabilities to date achieved by a single soft gripper.
