Department of Diagnostic and Interventional Radiology and Nuclear Medicine, University Medical Center Hamburg-Eppendorf, Martinistraße 52, 20251, Hamburg, Germany.
Department of Radiology, University of Wisconsin-Madison, Madison, WI, USA.
Sci Rep. 2022 Dec 31;12(1):22644. doi: 10.1038/s41598-022-26968-4.

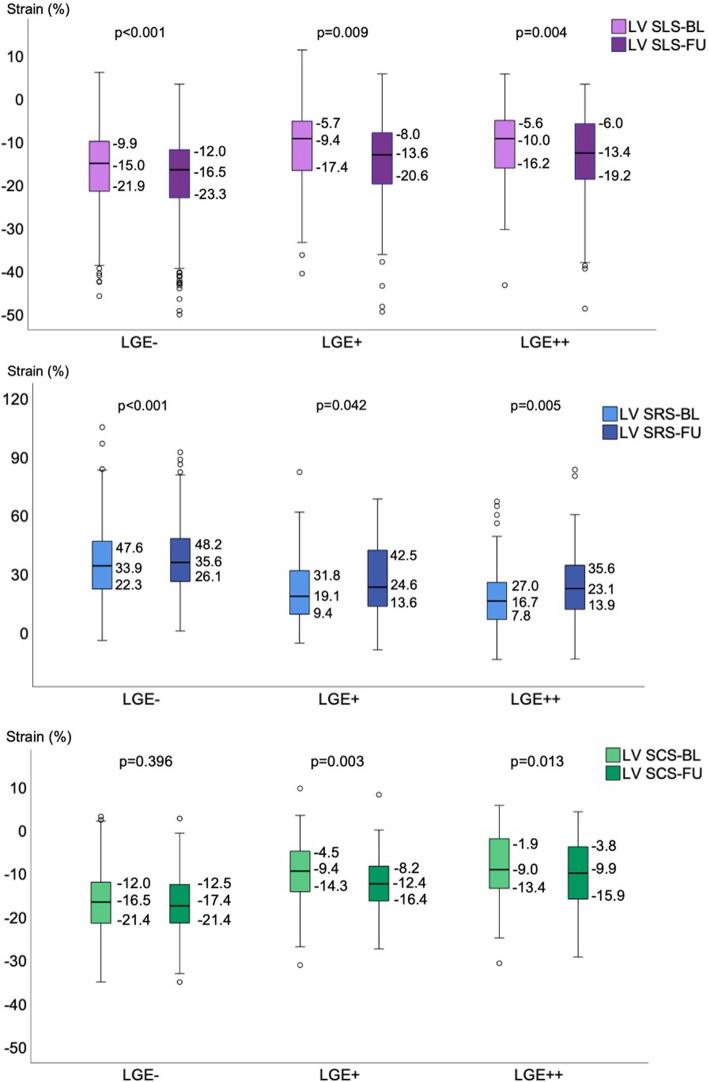

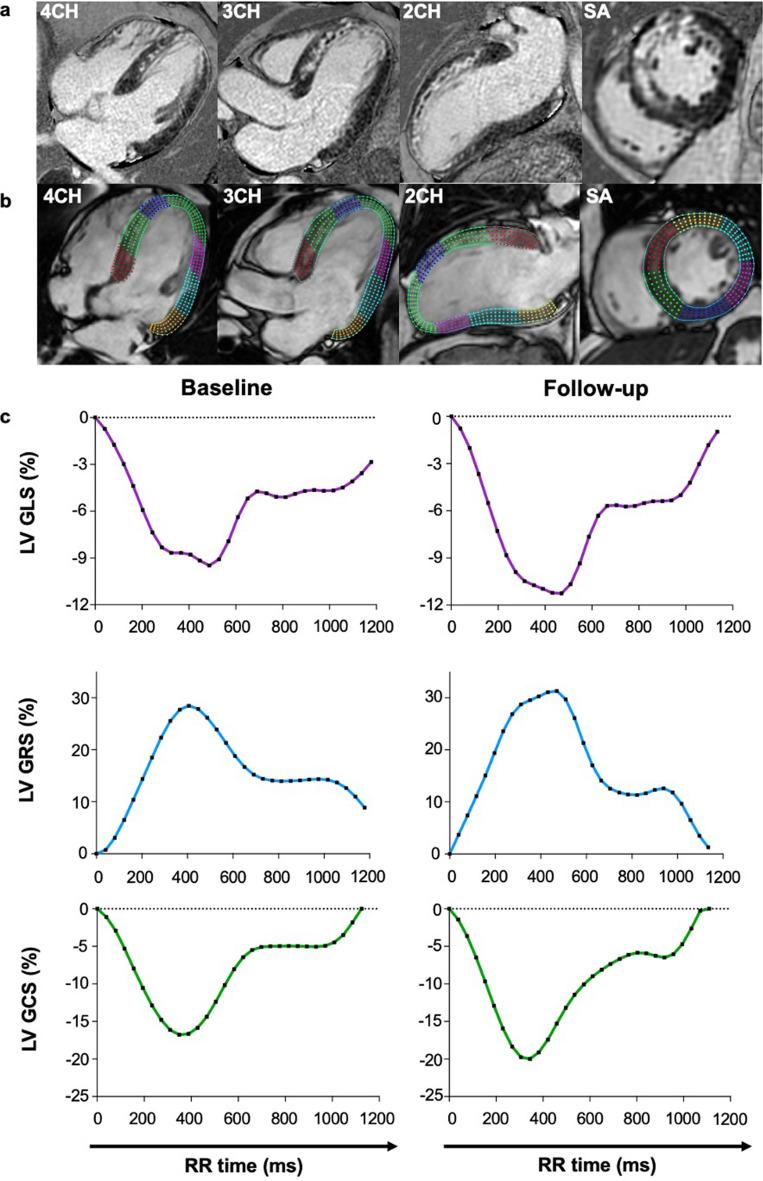

Strain is an important imaging parameter to determine myocardial deformation. This study sought to 1) assess changes in left ventricular strain and ejection fraction (LVEF) from acute to chronic ST-elevation myocardial infarction (STEMI) and 2) analyze strain as a predictor of late gadolinium enhancement (LGE). 32 patients with STEMI and 18 controls prospectively underwent cardiac magnetic resonance imaging. Patients were scanned 8 [Formula: see text] 5 days and six months after infarction (± 1.4 months). Feature tracking was performed and LVEF was calculated. LGE was determined visually and quantitatively on short-axis images and myocardial segments were grouped according to the LGE pattern (negative, non-transmural and transmural). Global strain was impaired in patients compared to controls, but improved within six months after STEMI (longitudinal strain from -14 ± 4 to -16 ± 4%, p < 0.001; radial strain from 38 ± 11 to 42 ± 13%, p = 0.006; circumferential strain from -15 ± 4 to -16 ± 4%, p = 0.023). Patients with microvascular obstruction showed especially attenuated strain results. Regional strain persisted impaired in LGE-positive segments. Circumferential strain could best distinguish between LGE-negative and -positive segments (AUC 0.73- 0.77). Strain improves within six months after STEMI, but remains impaired in LGE-positive segments. Strain may serve as an imaging biomarker to analyze myocardial viability. Especially circumferential strain could predict LGE.
应变是确定心肌变形的重要成像参数。本研究旨在:1)评估急性至慢性 ST 段抬高型心肌梗死(STEMI)过程中左心室应变和射血分数(LVEF)的变化;2)分析应变作为晚期钆增强(LGE)的预测因子。32 例 STEMI 患者和 18 例对照者前瞻性接受心脏磁共振成像。患者在梗死后 8 至 5 天和 6 个月(±1.4 个月)进行扫描。进行特征跟踪并计算 LVEF。在短轴图像上通过目测和定量确定 LGE,并根据 LGE 模式(阴性、非透壁和透壁)将心肌节段分组。与对照组相比,患者的整体应变受损,但在 STEMI 后 6 个月内得到改善(纵向应变从-14±4%变为-16±4%,p<0.001;径向应变从 38±11%变为 42±13%,p=0.006;周向应变从-15±4%变为-16±4%,p=0.023)。存在微血管阻塞的患者应变结果尤其减弱。在 LGE 阳性节段,区域性应变仍然受损。周向应变可以最好地区分 LGE 阴性和阳性节段(AUC 0.73-0.77)。应变在 STEMI 后 6 个月内得到改善,但在 LGE 阳性节段仍受损。应变可以作为分析心肌活力的影像学生物标志物。特别是周向应变可以预测 LGE。
