Behrent Arne, Borggraefe Veronika, Baeumner Antje J
Institute of Analytical Chemistry, Chemo- and Biosensors, University of Regensburg, Universitätsstraße 31, 93053, Regensburg, Germany.
Anal Bioanal Chem. 2024 Apr;416(9):2097-2106. doi: 10.1007/s00216-023-05082-y. Epub 2023 Dec 12.

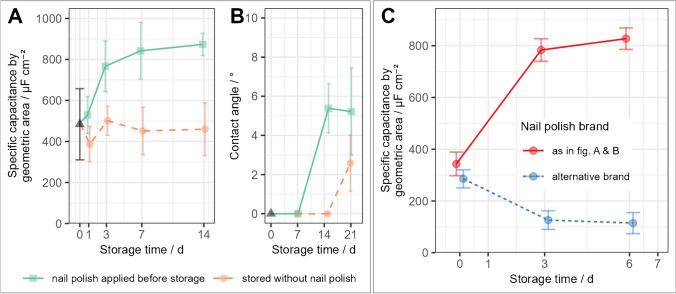

Laser-induced graphene (LIG) has received much attention in recent years as a possible transducer material for electroanalytical sensors. Its simplicity of fabrication and good electrochemical performance are typically highlighted. However, we found that unmodified and untreated LIG electrodes had a limited shelf-life for certain electroanalytical applications, likely due to the adsorption of adventitious hydrocarbons from the storage environment. Electrode responses did not change immediately after exposure to ambient conditions but over longer periods of time, probably due to the immense specific surface area of the LIG material. LIG shelf-life is seldomly discussed prominently in the literature, yet overall trends for solutions to this challenge can be identified. Such findings from the literature regarding the long-term storage stability of LIG electrodes, pure and modified, are discussed here along with explanations for likely protective mechanisms. Specifically, applying a protective coating on LIG electrodes after manufacture is possibly the easiest method to preserve electrode functionality and should be identified as a trend for well-performing LIG electrodes in the future. Furthermore, suggested influences of the accompanying LIG microstructure/morphology on electrode characteristics are evaluated.
近年来,激光诱导石墨烯(LIG)作为一种可能用于电分析传感器的换能器材料受到了广泛关注。其制备的简易性和良好的电化学性能通常备受瞩目。然而,我们发现未经修饰和处理的LIG电极在某些电分析应用中的保质期有限,这可能是由于从储存环境中吸附了外来碳氢化合物。电极暴露于环境条件后,其响应并非立即改变,而是在较长时间内发生变化,这可能是由于LIG材料巨大的比表面积所致。LIG的保质期在文献中很少被显著讨论,但可以确定应对这一挑战的总体趋势。本文将讨论文献中有关纯LIG电极和修饰LIG电极长期储存稳定性的此类发现,并对可能的保护机制进行解释。具体而言,在制造后对LIG电极施加保护涂层可能是保持电极功能的最简单方法,并且应被视为未来高性能LIG电极的一种趋势。此外,还评估了伴随的LIG微观结构/形态对电极特性的潜在影响。
