Enhancing Oral Bioavailability of Simvastatin Using Uncoated and Polymer-Coated Solid Lipid Nanoparticles.

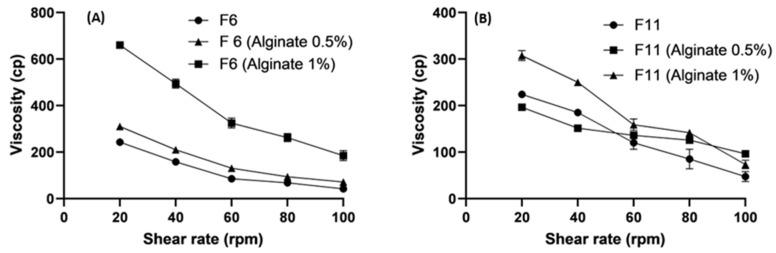

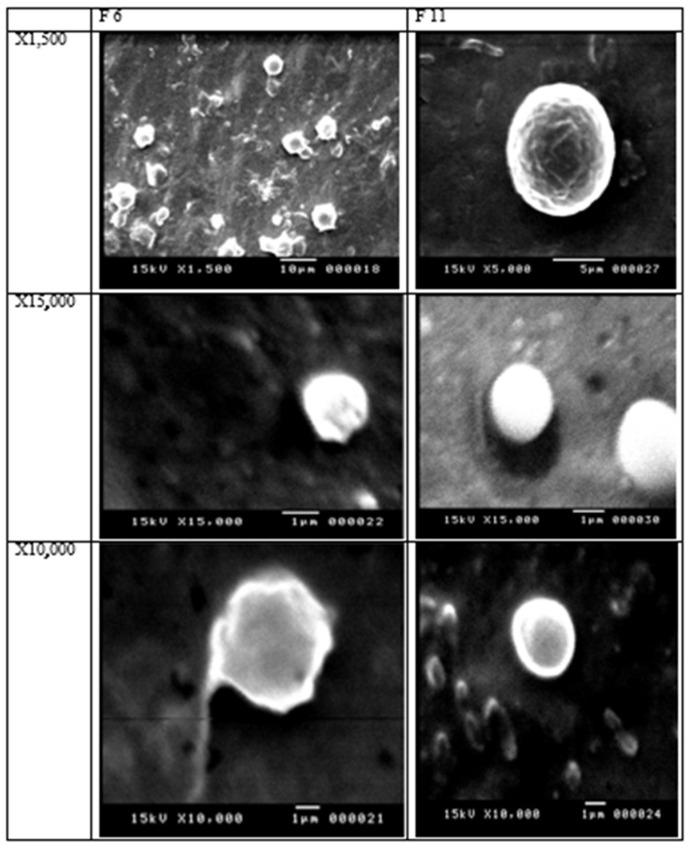

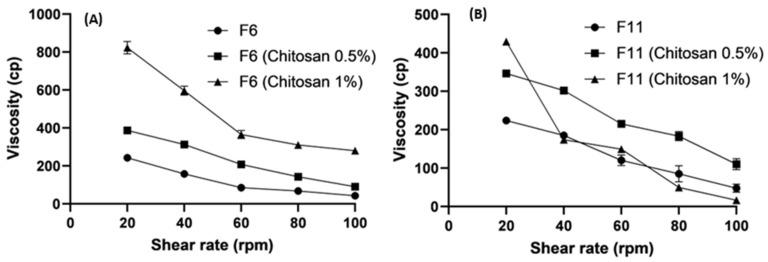

Simvastatin (SVA) is a well-prescribed drug for treating cardiovascular and hypercholesterolemia. Due to the extensive hepatic first-pass metabolism and poor solubility, its oral bioavailability is 5%. Solid lipid nanoparticles (SLNs) and hydrogel-coated SLNs were investigated to overcome the limited bioavailability of SVA. Four different lipids used alone or in combination with two stabilizers were employed to generate 13 SLNs. Two concentrations of chitosan (CS) and alginate (AL) were coating materials. SLNs were studied for particle size, zeta potential, in vitro release, rheology, and bioavailability. The viscosities of both the bare and coated SLNs exhibited shear-thinning behavior. The viscosity of F11 (Chitosan 1%) at 20 and 40 rpm were 424 and 168 cp, respectively. F11 had a particle size of 260.1 ± 3.72 nm with a higher release; the particle size of F11-CS at 1% was 524.3 ± 80.31 nm. In vivo studies illustrated that F11 had the highest plasma concentration when compared with the SVA suspension and coated chitosan (F11 (Chitosan 1%)). Greater bioavailability is measured as (AUC0→24), as compared to uncoated ones. The AUC for F11, F11-CS 1%, and the SVA suspension were 1880.4, 3562.18, and 272 ng·h/mL, respectively. Both bare and coated SLNs exhibited a significantly higher relative bioavailability when compared to that from the control SVA.
