Research on Electric Field Homogenization in Radial Multi-Nozzle Electrospinning.

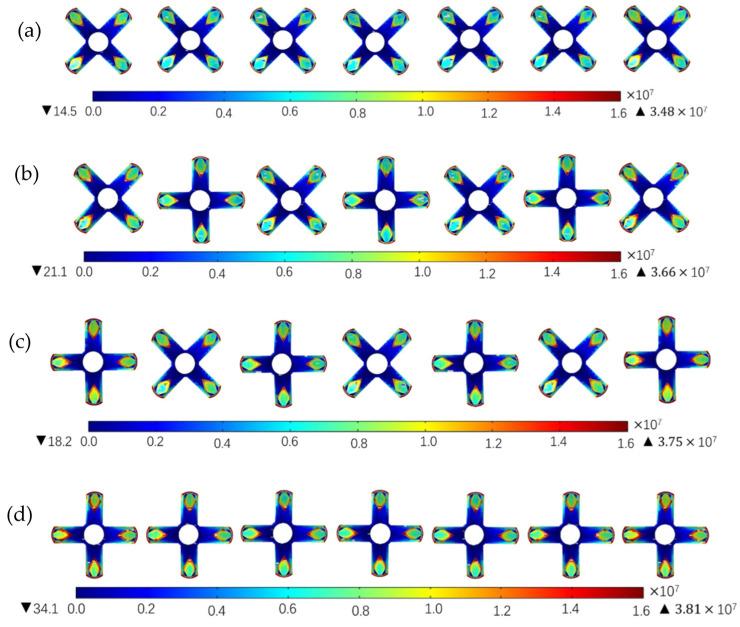

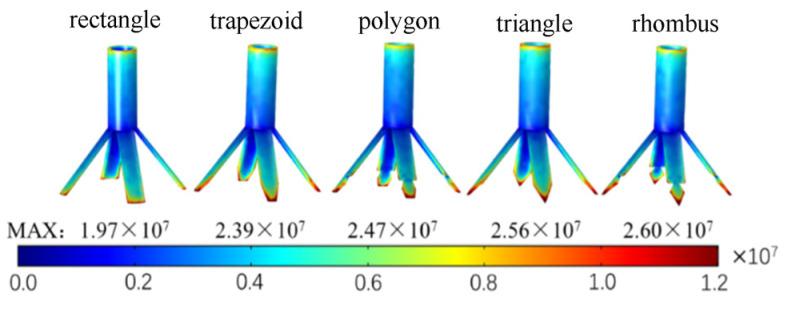

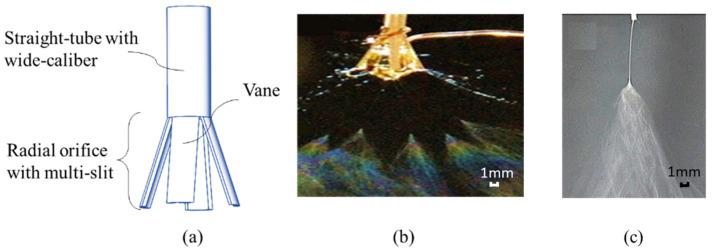

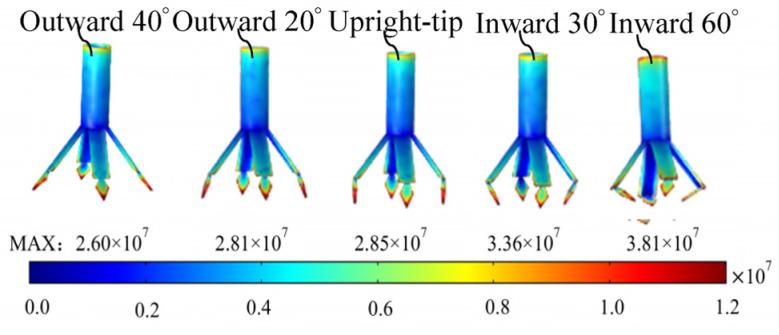

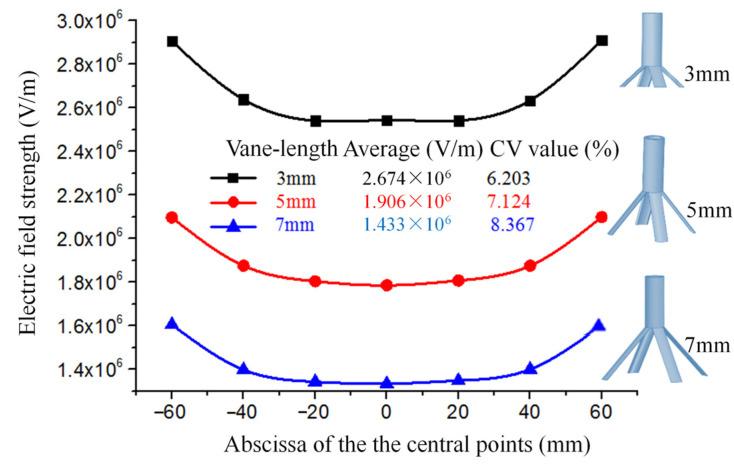

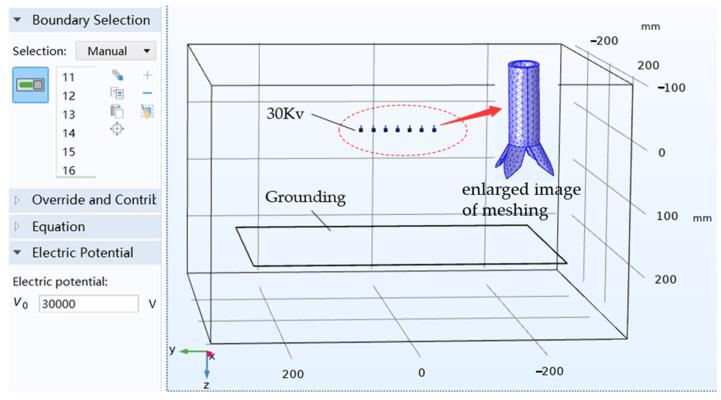

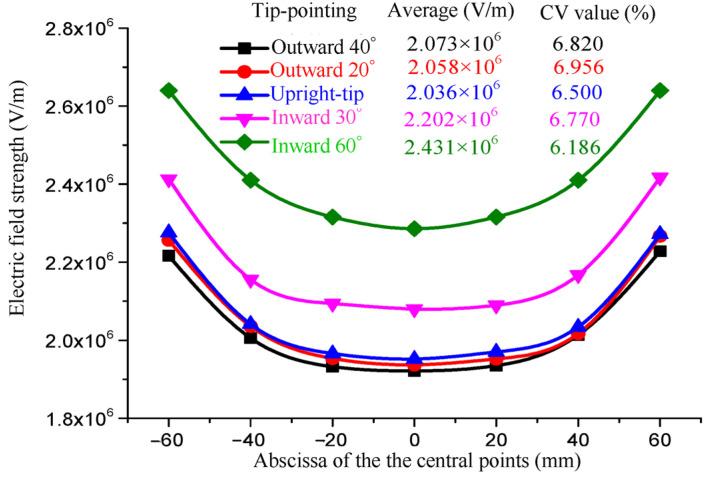

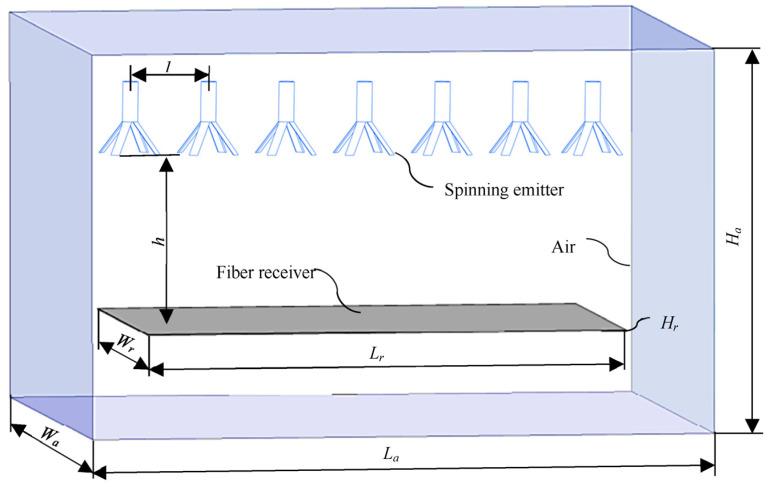

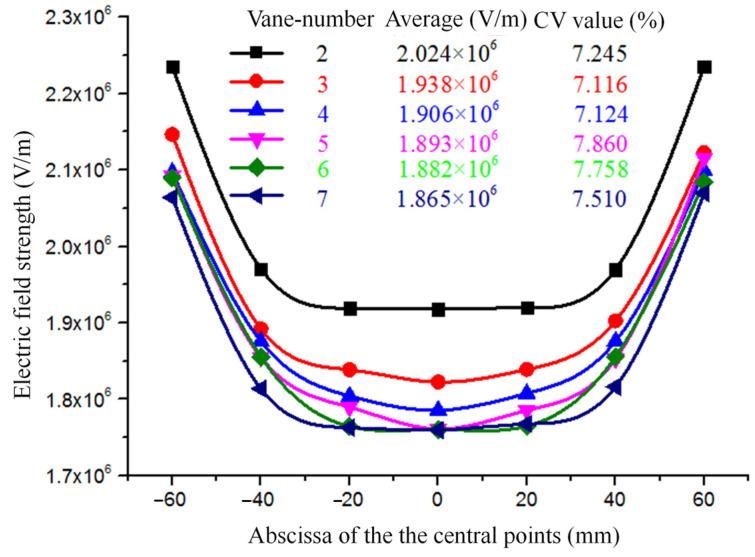

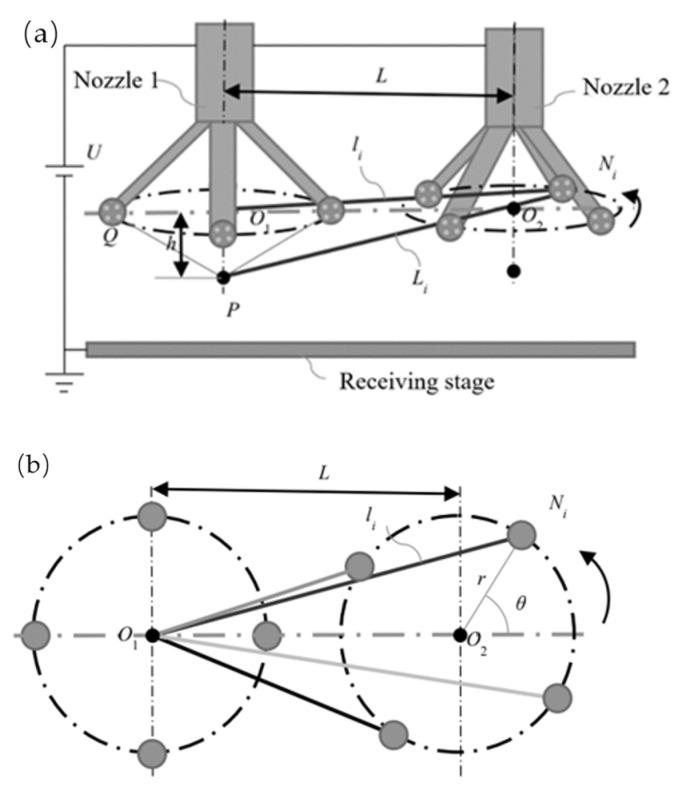

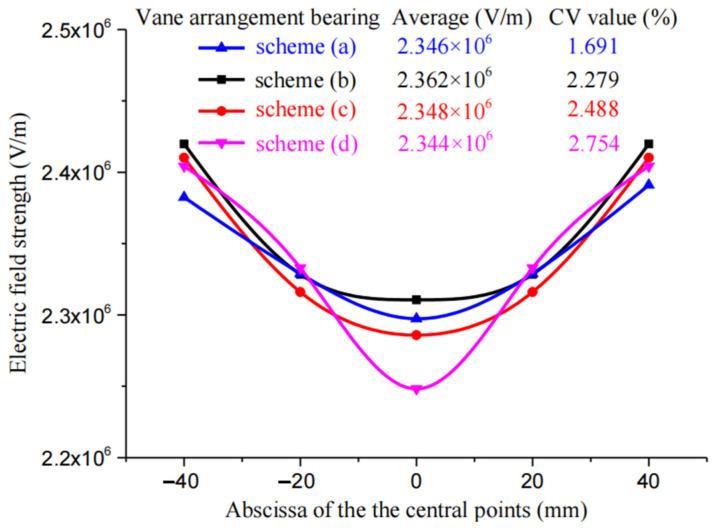

Electrospinning is an effective method to prepare nanofibers at present. Aiming at problems such as low spinnable viscosity and the low productivity of the traditional multi-needle, a radial nozzle was proposed in this paper. In order to solve the problem of end effects in multi-nozzle electrospinning, COMSOL Multiphysics 6.0 software was used to simulate the electric field in electrospinning with seven radial nozzles. And the influence on the electric field intensity and distribution of the structural parameters of the radial nozzle, including the number, length, tip-shape, and tip-pointing direction of the vanes, were studied. Then, the electric field intensity of any point on the central axis of a radial nozzle was obtained based on the principle of electric field superposition, and then the rotation angle of the vanes corresponding to the minimum Coulomb repulsion force on the target point was deduced. At last, the method of electric field homogenization of a rotating vane arrangement was obtained. In the simulation, the strength and homogenization of the electric field were taken as the research objective, and the optimum structure parameters of the radial nozzle were obtained; the uniform theory of the electric field based on the orientation of the vanes was verified. Then, electrospinning with seven radial nozzles was performed, and it was found that each radial nozzle can produce multiple jets during electrospinning, and the prepared electrospun membranes have even thickness and high porosity. What is more, the fibers are relatively finer and more uniform.
