Zhu Yicheng, Zhou Yichen, Zhang Xing, Pan Pengju, Yang Jinjun, Yu Chengtao
School of Environmental Science and Safety Engineering, Tianjin University of Science and Technology, 391 West Penn Road, Tianjin 300384, China.
Quzhou Research Institute, Zhejiang University, 99 Zheda Road, Quzhou 324000, China.
Gels. 2025 Mar 26;11(4):242. doi: 10.3390/gels11040242.

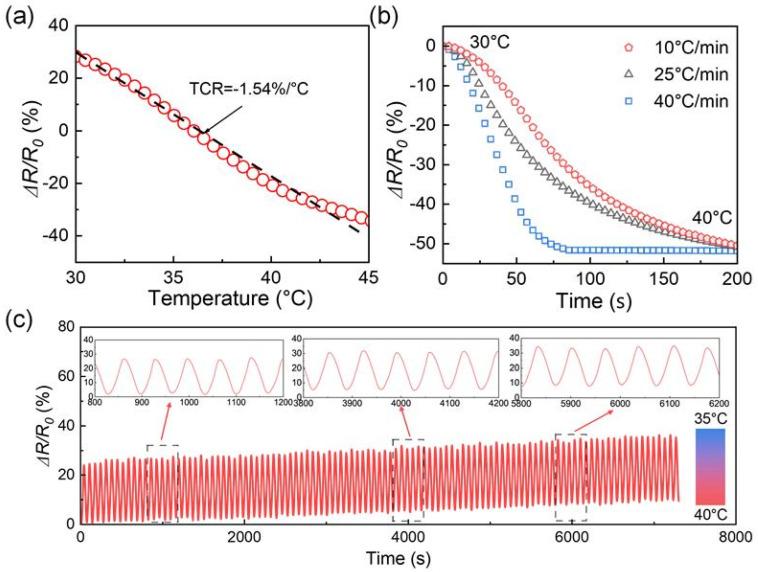

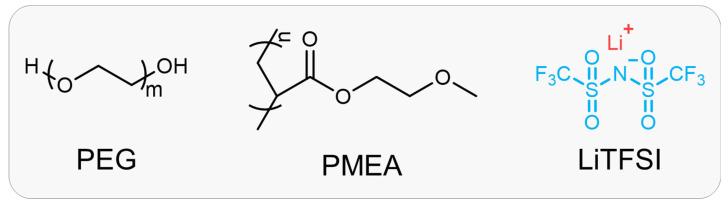

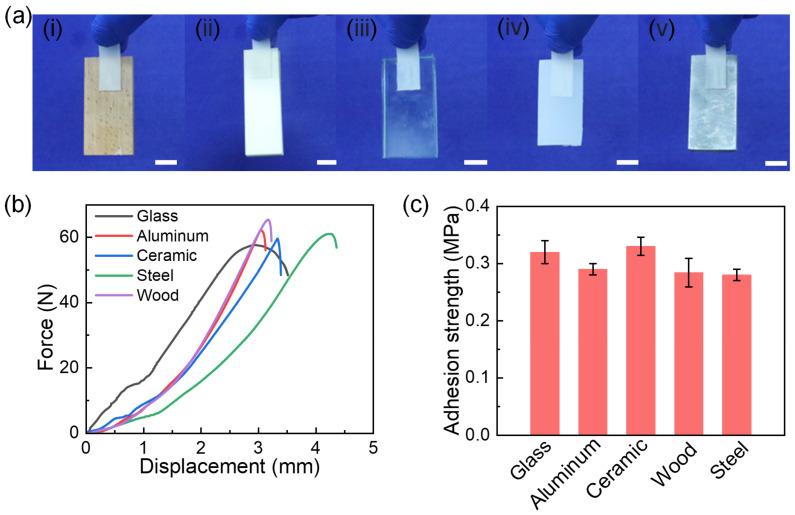

Ion-conductive gels (ICGs) are essential for achieving human-machine interfaces, bioelectronic applications, or durable wearable sensors. However, traditional solvent-dependent ICGs face bottlenecks such as dehydration-induced failure and challenges in achieving a balance between conductivity and mechanical properties. Here, this work developed a novel ternary ion-conductive xerogel (PEM-Li ICXG) system based on polyethylene glycol (PEG), poly (2-methoxyethyl acrylate) (PMEA), and LiTFSI. PEM-Li ICXGs exhibit high conductivity (2.7 × 10 S/m), high adhesive capability (0.34 MPa), and solvent-free characteristics. Remarkably, the incorporation of ions into ICXGs simultaneously optimizes their mechanical performance. We demonstrate the application of ICGs in flexible sensors for strain or temperature sensing. The proposed synthesis strategy is straightforward and may further inspire the design of novel high-performance ICXGs.
离子导电凝胶(ICG)对于实现人机界面、生物电子应用或耐用可穿戴传感器至关重要。然而,传统的依赖溶剂的ICG面临诸如脱水导致失效等瓶颈,以及在实现导电性和机械性能之间平衡方面的挑战。在此,这项工作基于聚乙二醇(PEG)、聚(丙烯酸2-甲氧基乙酯)(PMEA)和双三氟甲烷磺酰亚胺锂(LiTFSI)开发了一种新型三元离子导电干凝胶(PEM-Li ICXG)体系。PEM-Li ICXG具有高导电性(2.7×10 S/m)、高粘附能力(0.34 MPa)和无溶剂特性。值得注意的是,将离子引入ICXG同时优化了它们的机械性能。我们展示了ICG在用于应变或温度传感的柔性传感器中的应用。所提出的合成策略简单直接,可能会进一步激发新型高性能ICXG的设计。
