Detection of Early Endothelial Dysfunction by Optoacoustic Tomography.

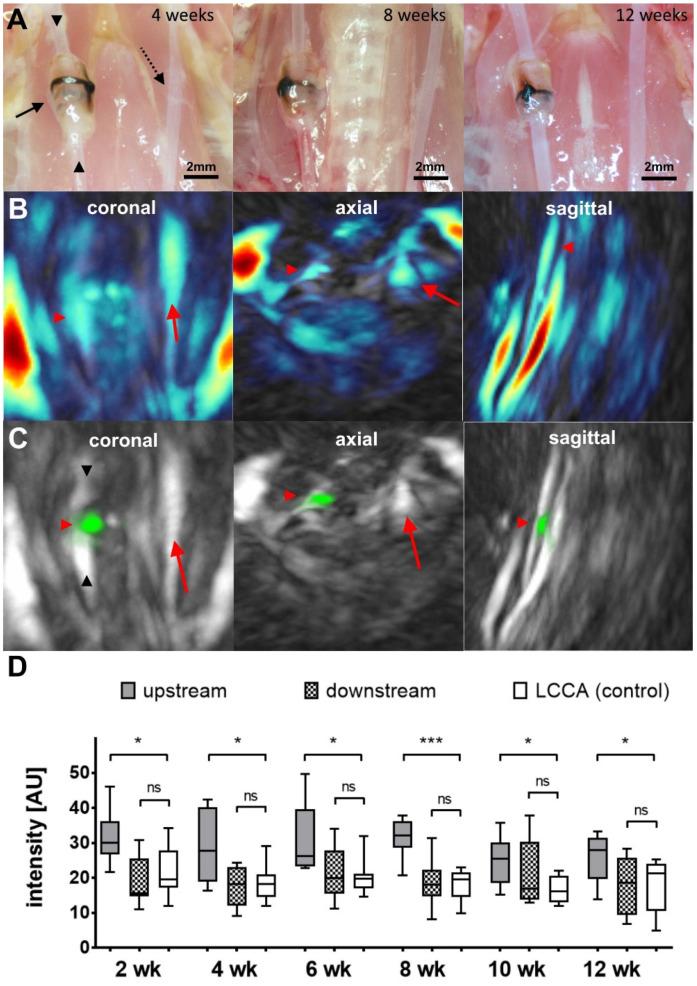

Variations in vascular wall shear stress are often presumed to result in the formation of atherosclerotic lesions at specific arterial regions, where continuous laminar flow is disturbed. The influences of altered blood flow dynamics and oscillations on the integrity of endothelial cells and the endothelial layer have been extensively studied in vitro and in vivo. Under pathological conditions, the Arg-Gly-Asp (RGD) motif binding integrin αβ has been identified as a relevant target, as it induces endothelial cell activation. Animal models for in vivo imaging of endothelial dysfunction (ED) mainly rely on genetically modified knockout models that develop endothelial damage and atherosclerotic plaques upon hypercholesterolemia (ApoE and LDLR), thereby depicting late-stage pathophysiology. The visualization of early ED, however, remains a challenge. Therefore, a carotid artery cuff model of low and oscillating shear stress was applied in CD-1 wild-type mice, which should be able to show the effects of altered shear stress on a healthy endothelium, thus revealing alterations in early ED. Multispectral optoacoustic tomography (MSOT) was assessed as a non-invasive and highly sensitive imaging technique for the detection of an intravenously injected RGD-mimetic fluorescent probe in a longitudinal (2-12 weeks) study after surgical cuff intervention of the right common carotid artery (RCCA). Images were analyzed concerning the signal distribution upstream and downstream of the implanted cuff, as well as on the contralateral side as a control. Subsequent histological analysis was applied to delineate the distribution of relevant factors within the carotid vessel walls. Analysis revealed a significantly enhanced fluorescent signal intensity in the RCCA upstream of the cuff compared to the contralateral healthy side and the downstream region at all time points post-surgery. The most obvious differences were recorded at 6 and 8 weeks after implantation. Immunohistochemistry revealed a high degree of α-positivity in this region of the RCCA, but not in the left common carotid artery (LCCA) or downstream of the cuff. In addition, macrophages could be detected by CD68 immunohistochemistry in the RCCA, showing ongoing inflammatory processes. In conclusion, MSOT is capable of delineating alterations in endothelial cell integrity in vivo in the applied model of early ED, where an elevated expression of integrin αβ was detected within vascular structures.
