Studies on the impact of modifications at the Gln-Trp site in RM2-based GRPR ligands.

BACKGROUND

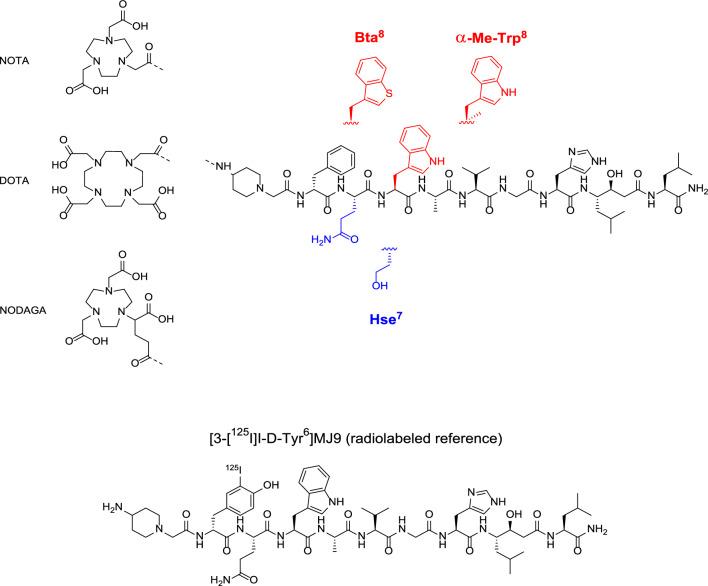

One of the most studied, and preclinically as well as clinically applied gastrin-releasing peptide receptor (GRPR) ligands represents the antagonist RM2 (DOTA-Pip-D-Phe-Gln-Trp-Ala-Val-Gly-His-Sta-Leu-NH). As an improved in vivo stability was observed for a RM2 analog comprising the unnatural amino acid α-methyl-L-tryptophan instead of L-Trp, we aimed to elucidate the impact of other unnatural amino acids (homoserine [Hse], β-(3-benzothienyl)alanine [Bta]) at the metabolically less stable Gln-Trp site. Furthermore, we conjugated either DOTA, NOTA or NODAGA to the RM2 peptide and its modified derivatives, and evaluated each analog preclinically using Ga and Cu, as well as Lu (only DOTA-comprising compounds).

RESULTS

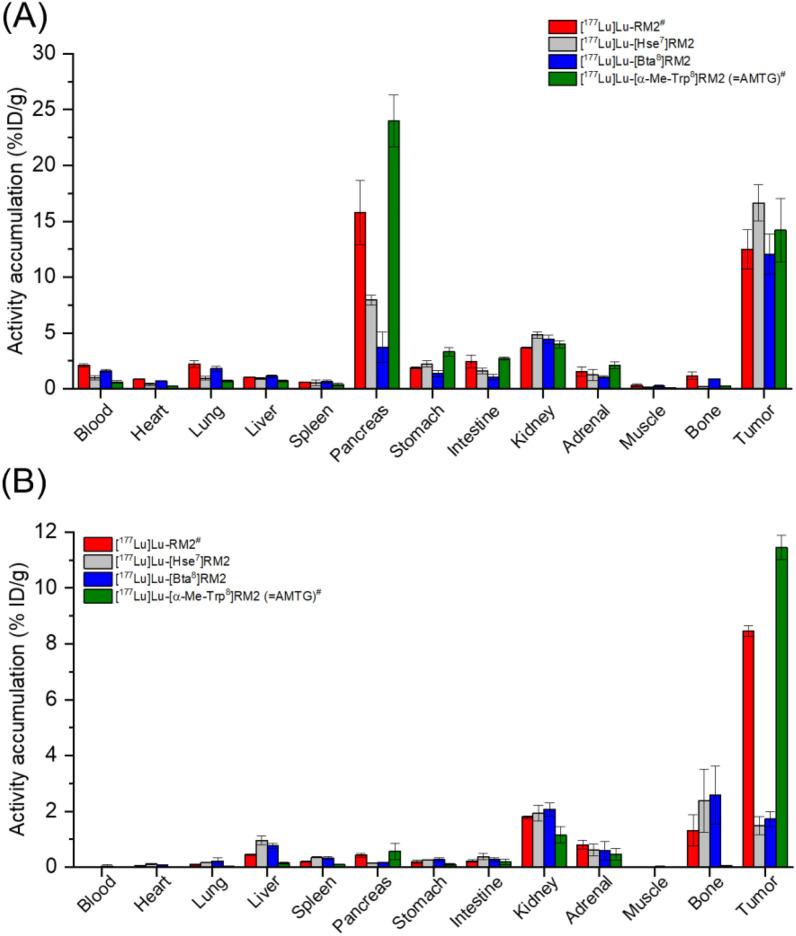

GRPR affinity and lipophilicity of RM2 derivatives were in a range of 1.2-8.4 nM and - 2.9 to - 1.1 (Ga-labeled), 1.7-33.0 nM and - 2.4 to - 1.6 (Cu-labeled), as well as 3.0-19.7 nM and - 3.2 to - 1.8 (Lu-labeled), respectively. Both, [Lu]Lu-[Hse]RM2 and [Lu]Lu-[Bta]RM2 revealed distinctly lower in vivo stability (< 20% intact at 15 min post-injection) than [Lu]Lu-[α-Me-Trp]RM2 (= [Lu]Lu-AMTG) and [Lu]Lu-RM2 (> 30% intact at 30 min post-injection). Both [Ga]Ga-RM2 and [Ga]Ga-AMTG exhibited high tumor (~ 15 percentage injected dose per gram, %ID/g) and pancreas uptake (> 25%ID/g), whereas [Ga]Ga-[Hse]RM2 and [Ga]Ga-[Bta]RM2 revealed lower tumor (~ 7.5%ID/g) but also substantially lower pancreas uptake (< 8%ID/g) at 1 h post-injection. At 24 h post-injection (p.i.), [Lu]Lu-RM2 and [Lu]Lu-AMTG exhibited high (> 8% ID/g) while [Lu]Lu-[Hse]RM2 and [Lu]Lu-[Bta]RM2 displayed low tumor retention (~ 2%ID/g). All compounds showed low activity levels in the pancreas at 24 h post-injection (< 1%ID/g).

CONCLUSION

Substitution of the Gln-Trp site in RM2 by artificial amino acids had a distinct impact on overall pharmacokinetics. While Hse (instead of Gln) and Bta (instead of Trp) led to a decreased, α-Me-Trp (instead of Trp) led to an increased in vivo stability, which resulted in improved pharmacokinetics over time in case of the latter. However, at 1 h post-injection both [Ga]Ga-[Hse]RM2 and [Ga]Ga-[Bta]RM2 displayed slightly higher tumor-to-pancreas and tumor-to-intestine ratios, rendering homoserine and β-(3-benzothienyl)alanine potential options for the modification of GRPR ligands with regard to imaging properties.
