CRISPR 系统的特异性分析揭示了大大增强的脱靶基因编辑。

Specificity profiling of CRISPR system reveals greatly enhanced off-target gene editing.

机构信息

State Key Laboratory of Natural and Biomimetic Drugs, School of Pharmaceutical Sciences, Peking University, Beijing, 100191, China.

Biomics Biotechnologies co. Ltd, Nantong, 226016, Jiangsu Province, China.

出版信息

Sci Rep. 2020 Feb 10;10(1):2269. doi: 10.1038/s41598-020-58627-x.

Abstract

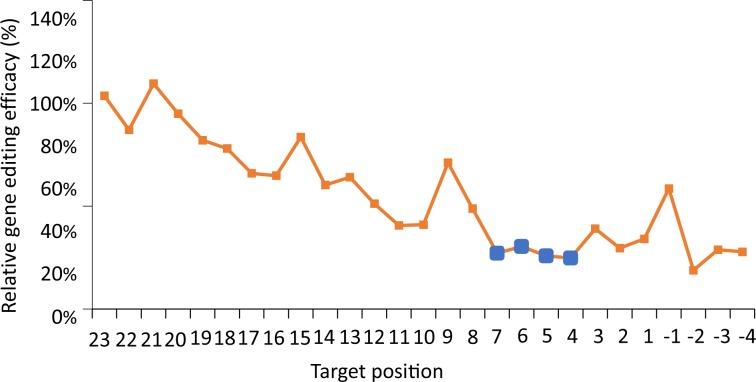

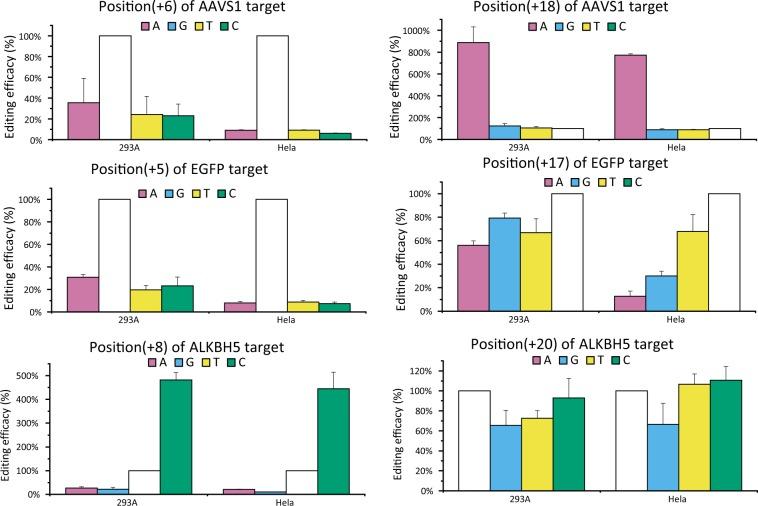

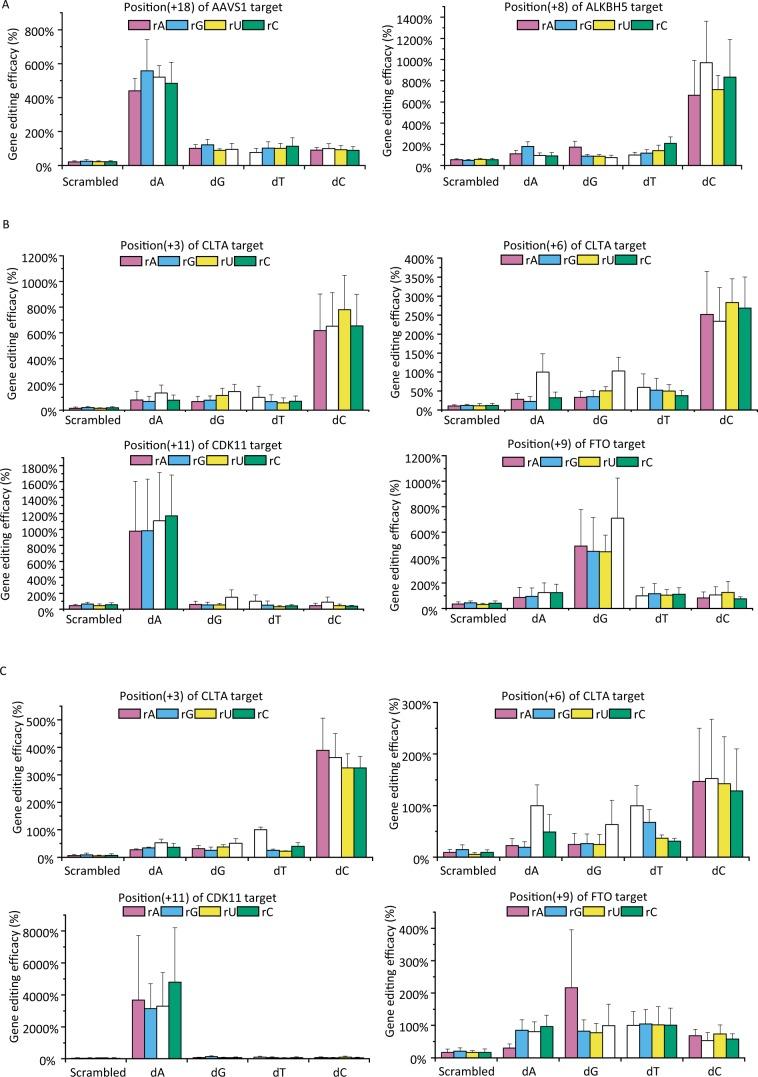

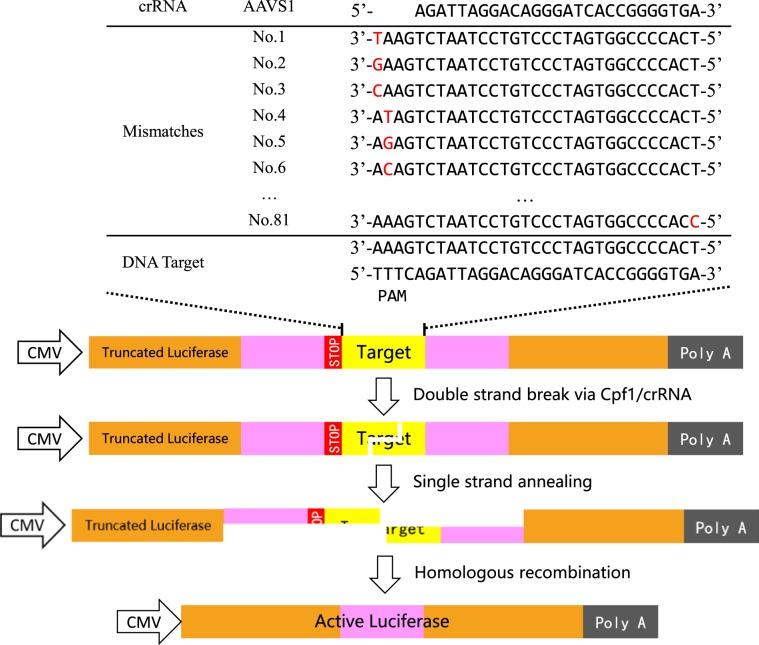

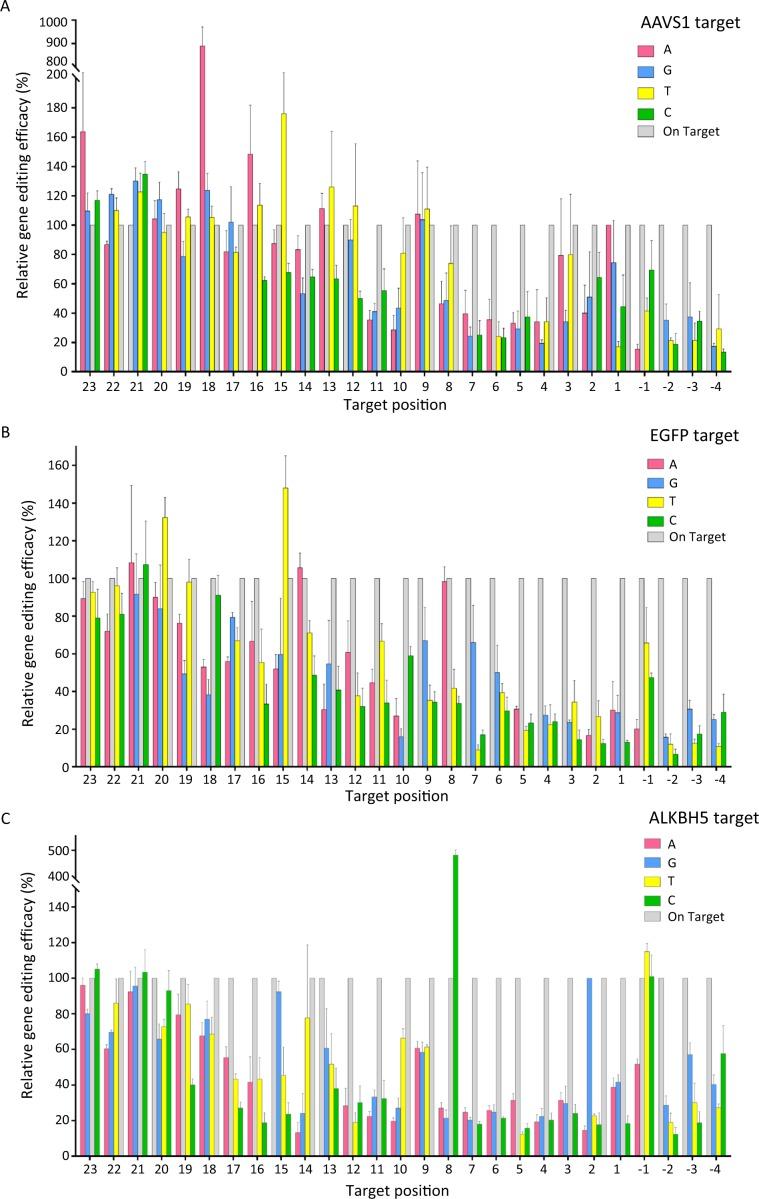

To explore the editing specificity of CRISPR/Cpf1 system, effects of target mutation were systematically examined using a reporter activation assay, with a set of single-nucleotide mutated target site. Consistent with our previous study performed with CRISPR/Cas9, a "core" sequence region that is highly sensitive to target mutation was characterized. The region is of 4-nucleotide long, located from +4 to +7 position of the target site, and positioned within a positively charged central channel when assembled into Cpf1 endonuclease. Single-nucleotide mutation at the core sequence could abolish gene editing mediated by a however active sgRNA. With a great majority of the target sites, a kind of 'super' off-target gene editing was observed with both CRISPR/Cpf1 and CRISPR/Cas9. For a given target site, mutation at certain positions led to greatly enhanced off-target gene editing efficacy, even up to 10-fold of that of the fully-matched target. Study further found that these effects were determined by the identity of target nucleotide, rather than the nucleotide of crRNA. This likely suggests that the interactions between target nucleotide and the endonuclease are involved in this process.

摘要

为了探索 CRISPR/Cpf1 系统的编辑特异性,我们使用报告基因激活测定法系统地检查了靶突变的影响,使用了一组单核苷酸突变的靶位点。与我们之前使用 CRISPR/Cas9 进行的研究一致,我们鉴定了一个“核心”序列区域,该区域对靶突变高度敏感。该区域长 4 个核苷酸,位于靶位点的+4 到+7 位,当组装成 Cpf1 内切酶时,位于带正电荷的中央通道内。核心序列中的单核苷酸突变可以使然而活性 sgRNA 介导的基因编辑失效。对于绝大多数靶位点,我们观察到 CRISPR/Cpf1 和 CRISPR/Cas9 都存在一种“超级”脱靶基因编辑。对于给定的靶位点,某些位置的突变导致脱靶基因编辑效率大大增强,甚至达到完全匹配靶位的 10 倍。研究进一步发现,这些效应是由靶核苷酸的身份决定的,而不是 crRNA 的核苷酸。这可能表明靶核苷酸与内切酶之间的相互作用参与了这一过程。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6a22/7010781/d763417a16c8/41598_2020_58627_Fig1_HTML.jpg
