Polyvinyl Alcohol/Graphene Oxide Conductive Hydrogels via the Synergy of Freezing and Salting Out for Strain Sensors.

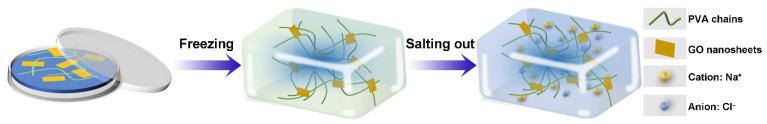

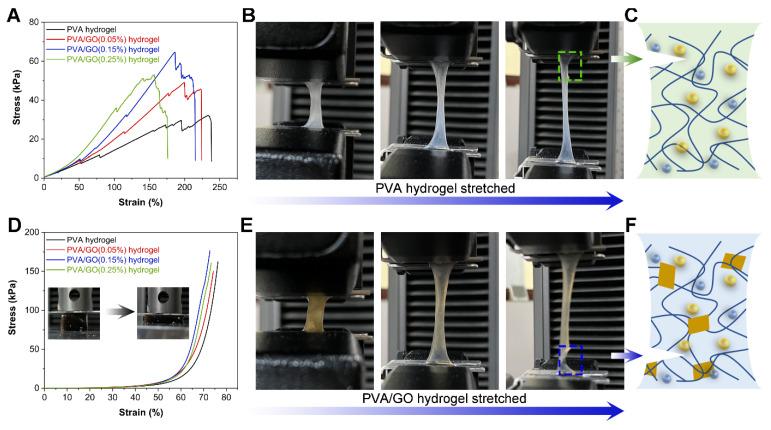

Hydrogels of flexibility, strength, and conductivity have demonstrated broad applications in wearable electronics and soft robotics. However, it is still a challenge to fabricate conductive hydrogels with high strength massively and economically. Herein, a simple strategy is proposed to design a strong ionically conductive hydrogel. This ion-conducting hydrogel was obtained under the synergistic action by salting out the frozen mixture of polyvinyl alcohol (PVA) and graphene oxide (GO) using a high concentration of sodium chloride solution. The developed hydrogel containing only 5 wt% PVA manifests good tensile stress (65 kPa) and elongation (180%). Meanwhile, the PVA matrix doped with a small amount of GO formed uniformly porous ion channels after salting out, endowed the PVA/GO hydrogel with excellent ionic conductivity (up to 3.38 S m). Therefore, the fabricated PVA/GO hydrogel, anticipated for a strain sensor, exhibits good sensitivity (Gauge factor = 2.05 at 100% strain), satisfying working stability (stably cycled for 10 min), and excellent recognition ability. This facile method to prepare conductive hydrogels displays translational potential in flexible electronics for engineering applications.
