Impact of Graphene Layers on Genetic Expression and Regulation within Sulfate-Reducing Biofilms.

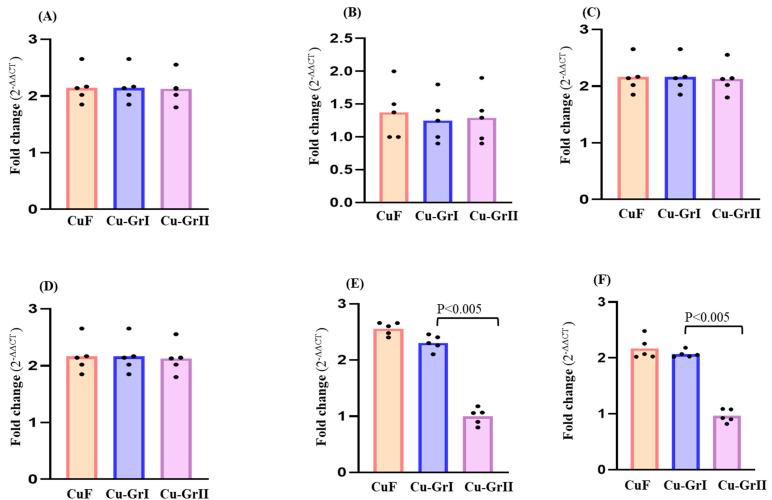

Bacterial adhesion and biofilm maturation is significantly influenced by surface properties, encompassing both bare surfaces and single or multi-layered coatings. Hence, there is an utmost interest in exploring the intricacies of gene regulation in sulfate-reducing bacteria (SRB) on copper and graphene-coated copper surfaces. In this study, G20 was used as the model SRB to elucidate the pathways that govern pivotal roles during biofilm formation on the graphene layers. Employing a potent reporter green fluorescent protein (GFP) tagged to G20, the spatial structure of G20 biofilm on copper foil (CuF), single-layer graphene-coated copper (Cu-GrI), and double-layer graphene-coated copper (Cu-GrII) surfaces was investigated. Biofilm formation on CuF, Cu-GrI, and Cu-GrII surfaces was quantified using CLSM z-stack images within COMSTAT v2 software. The results revealed that CuF, Cu-GrI, and Cu-GrII did not affect the formation of the GFP-tagged O. G20 biofilm architecture. qPCR expression showed insignificant fold changes for outer membrane components regulating the quorum-sensing system, and global regulatory proteins between the uncoated and coated surfaces. Notably, a significant expression was observed within the sulfate reduction pathway confined to dissimilatory sulfite reductases on the Cu-GrII surface compared to the CuF and Cu-GrI surfaces.
